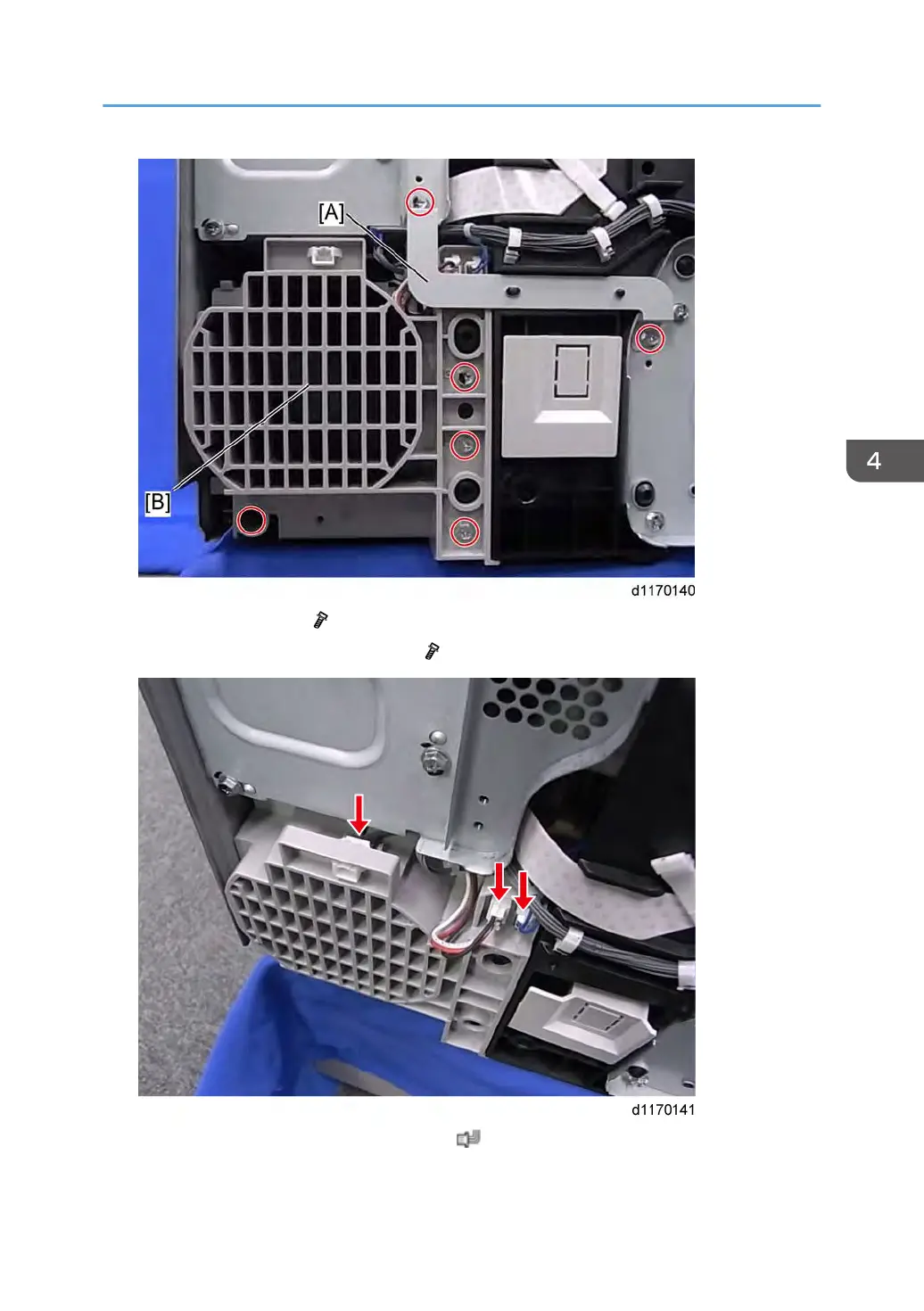

2. Remove the bracket [A] ( x 2).
3. Remove four screws of the fan cover [B] ( x 4).
4. Disconnect three connectors on the fan cover ( x 3).
Electrical Components
309
