Ricoh AFICIO MP C305SP Field Service Manual

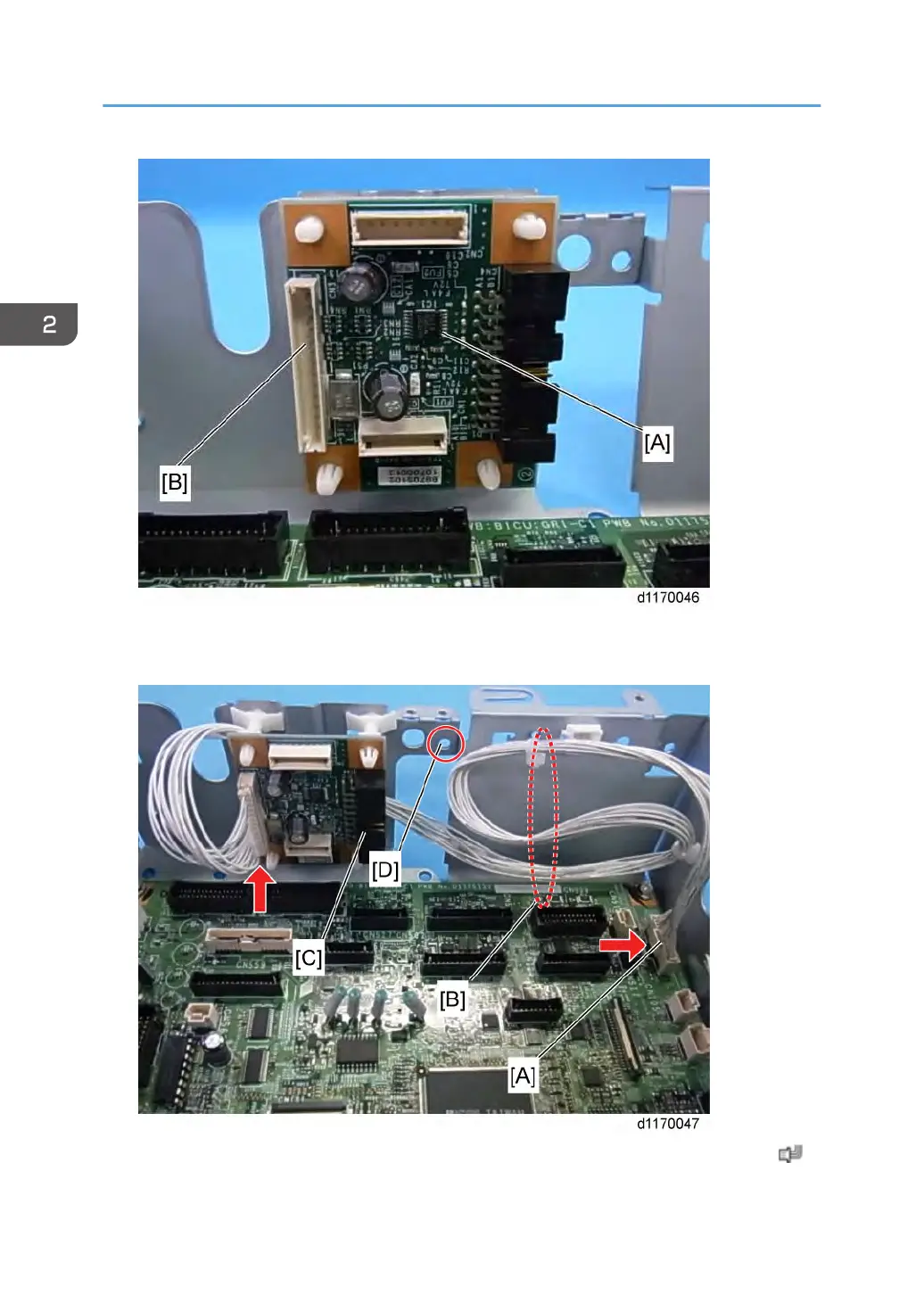

4. Install the key counter interface board [A] on the four studs.
5. Connect the harness included in this kit to the connector [B] on the interface board.
6. Route the harness through the rear of the interface board, and then connect it to CN570 [A] ( x
2).
2. Installation
84
