RICOH Interactive Whiteboard D6500/D8400

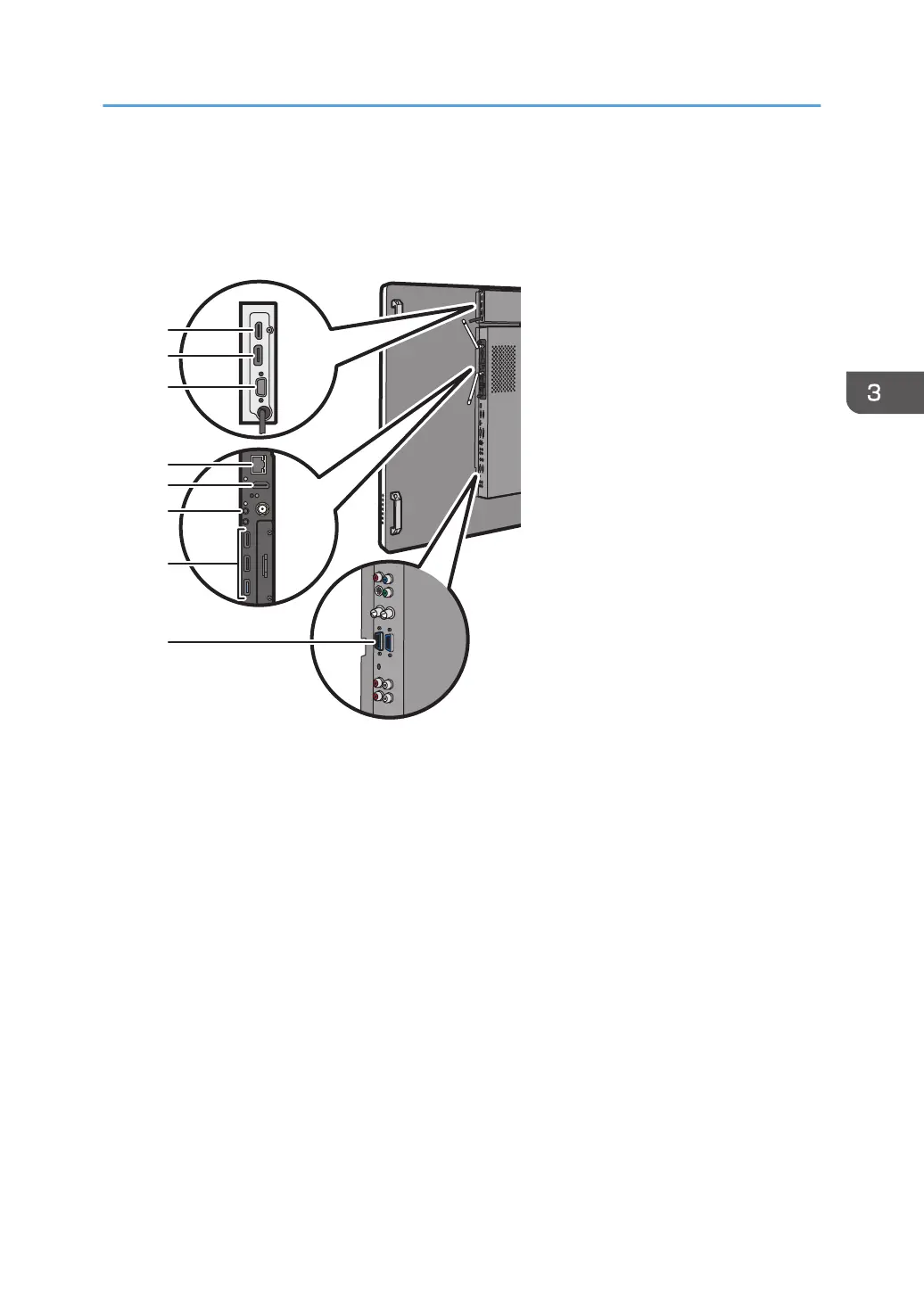

The following are the input/output terminals on the Capture Board and Controller Unit and their
descriptions. For the input/output terminals of the main unit and other parts of the machine, see
"Read This First" of RICOH Interactive Whiteboard D6500/D8400.
5
6
1
2
3
DTW496
4
8
7
1. HDMI Input
2. DisplayPort Input
DisplayPort 1.1a compliant
3. VGA Input
4. LAN Port
5. HDMI Output
6. Audio Output
7. USB Port
8. VGA Input (D6500 is used as an example in the figure)
Devices That Can Be Connected to the Machine
