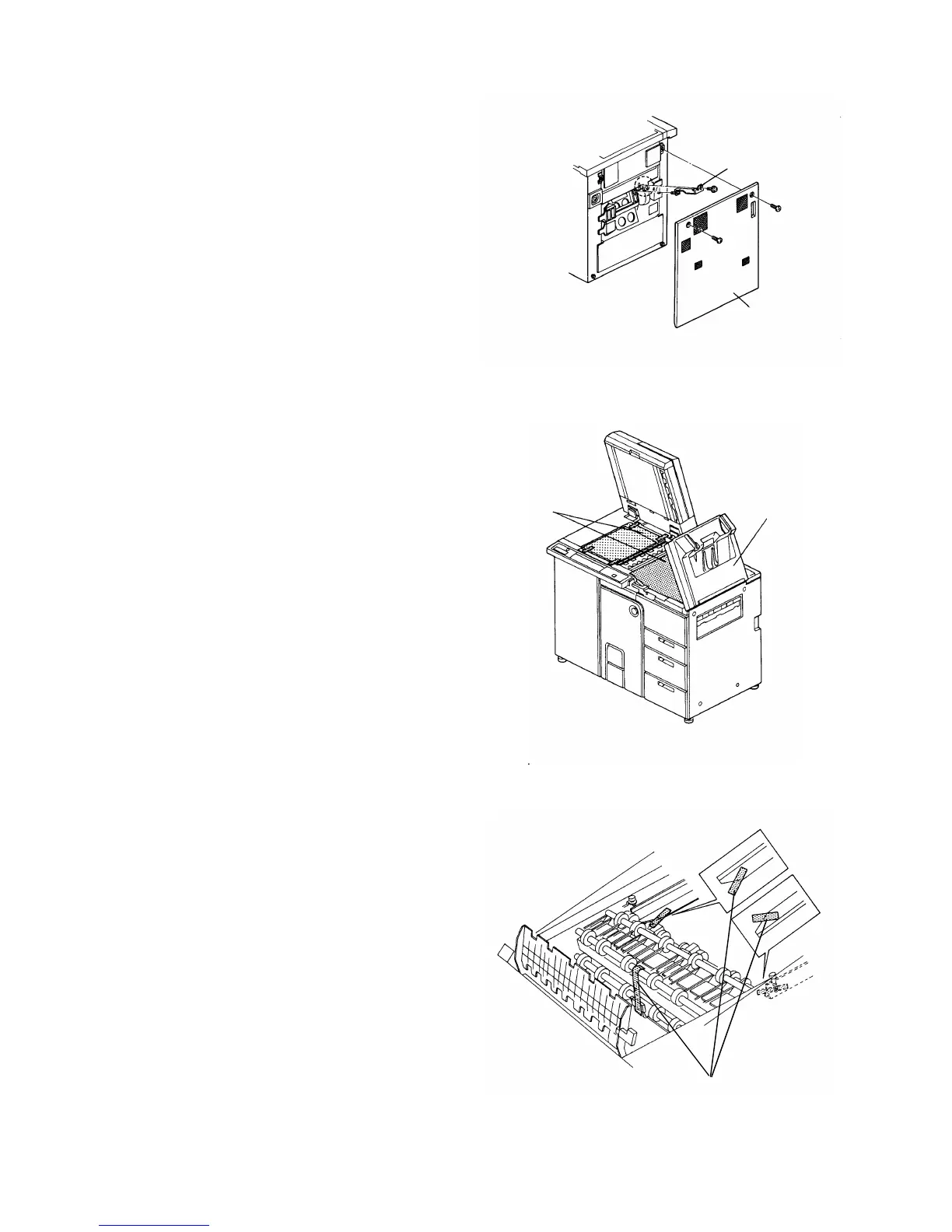

4.
Take off the left cover and remove the red bracket
holding the second mirror.
5.
Remove the protective sheets of the exposure
glass and copy tray.
6.
Remove the strips of filament tape from the duplex
unit.
Protective sheet
Copy tray
Filament tape
Holder bracket
