31. ELECTRICAL SECTION 1 (A112)
See Page 74
33. ELECTRICAL SECTION 3 (A112)
See Page 78
35. ADF FRAME & ELECTRICAL SECT. (A112)
See Page 72
32. ELECTRICAL SECTION 2 (A112)
See Page 76
34. ADF EXTERIOR (A112)
See Page 80
36. ADF FEED SECTION (A112)

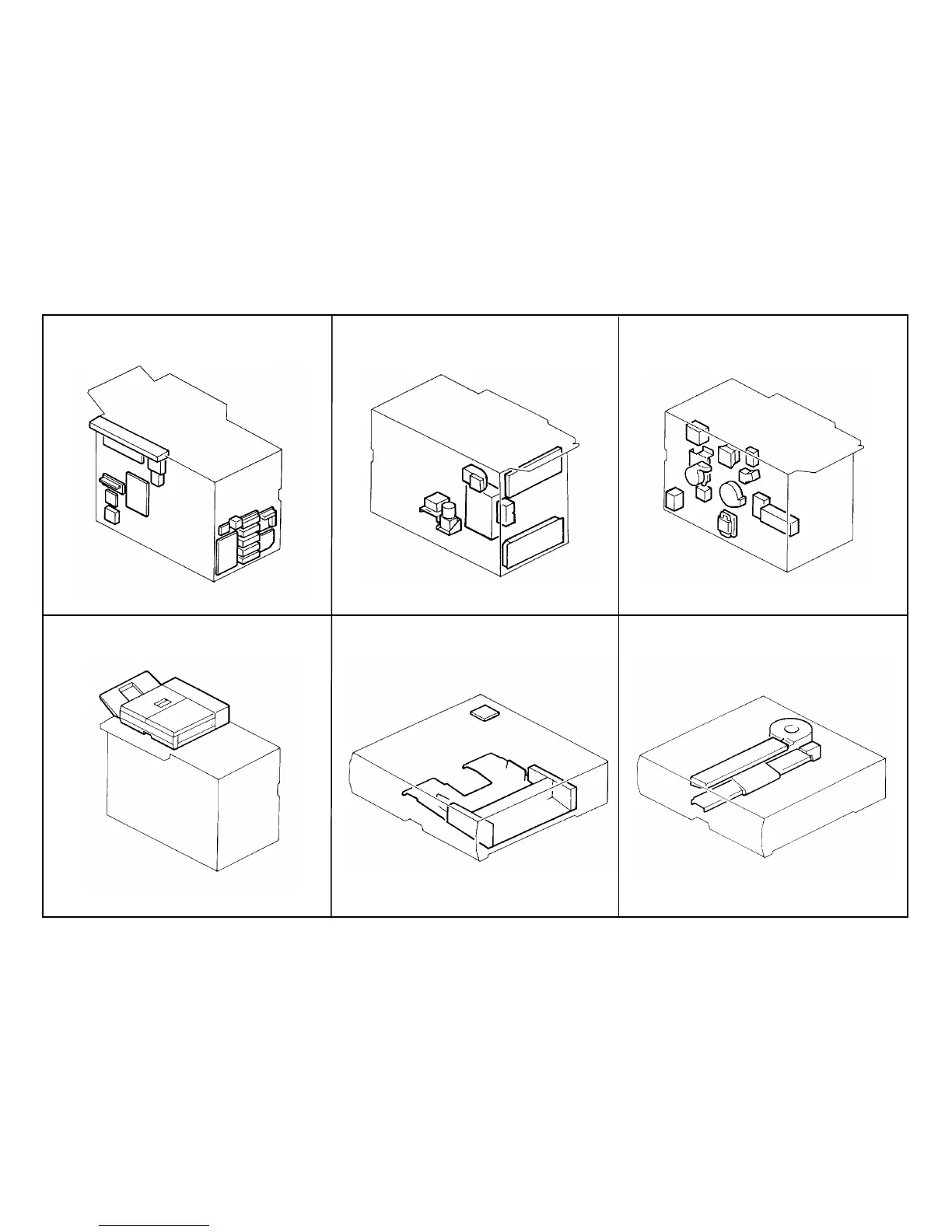

LOCATION OF UNIT
FT9101 8 Parts Location and List
