2.1.7 Removing the vertical transport unit
You will have to remove the vertical transport unit when:
• Replacing the drive system
• Replacing each roller
WARNING
• Due to the weight, two operators are required.
• Be sure to pull out the power cord during work.
1. Pull out all paper trays.
2. Turn off the main switch.
3. Open the upper right door.
4. Open the front door.

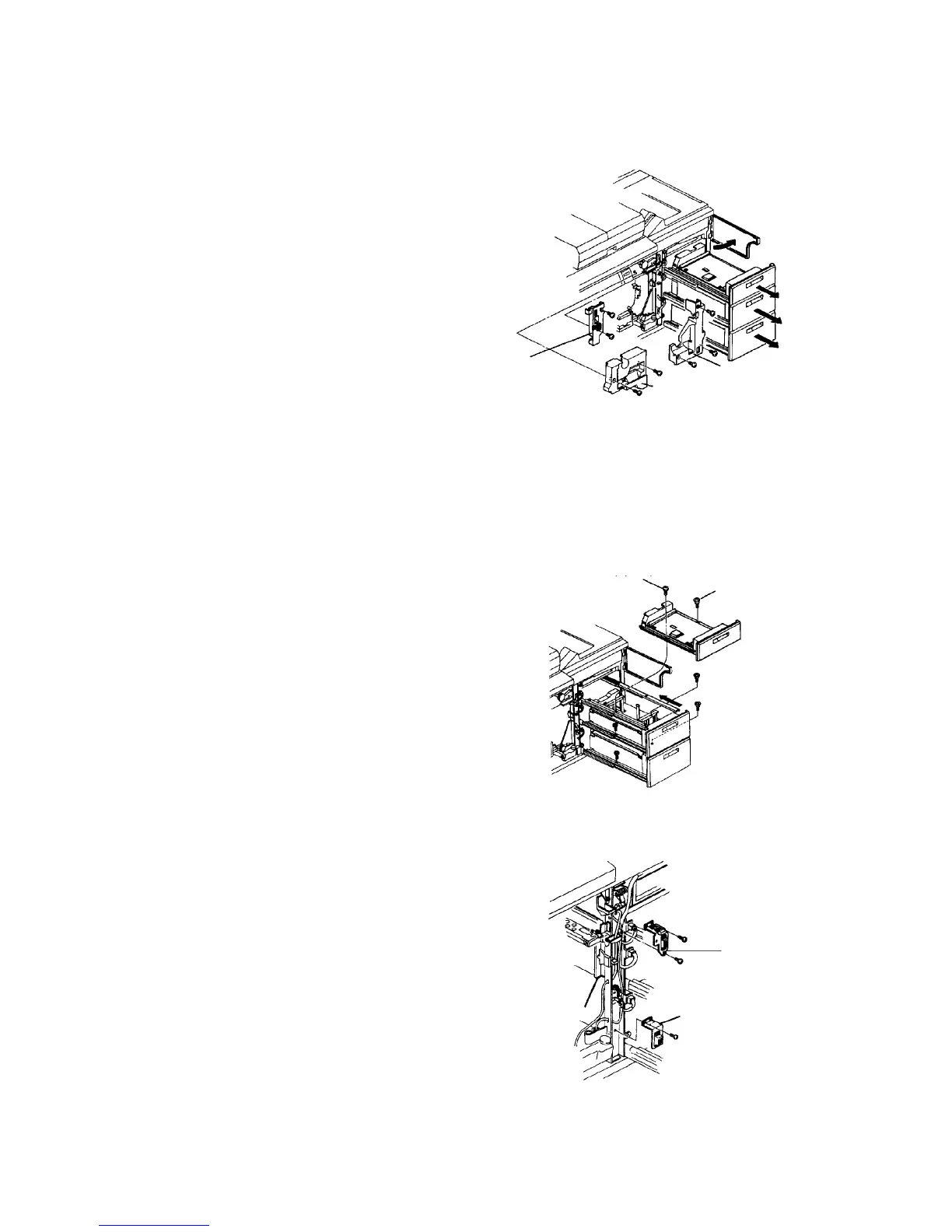

5. Remove all inner covers: fusing, vertical transport
upper and vertical transport lower.
6. Remove two screws each to remove all paper
trays.
CAUTION
Tray fixing screws are stepped screws on the
right side and plated screws on the left side.
Take care during reinstallation.
7. Remove the upper and lower door catch magnets
with their brackets.
Vertical transport
upper inner cover
Fusing
inner
cover
Vertical transport
lower inner cover
Plated screw
Stepped screw
Door catch
magnet, upper
bracket
Door catch
magnet, lower
bracket
To Next Page
