CAUTION

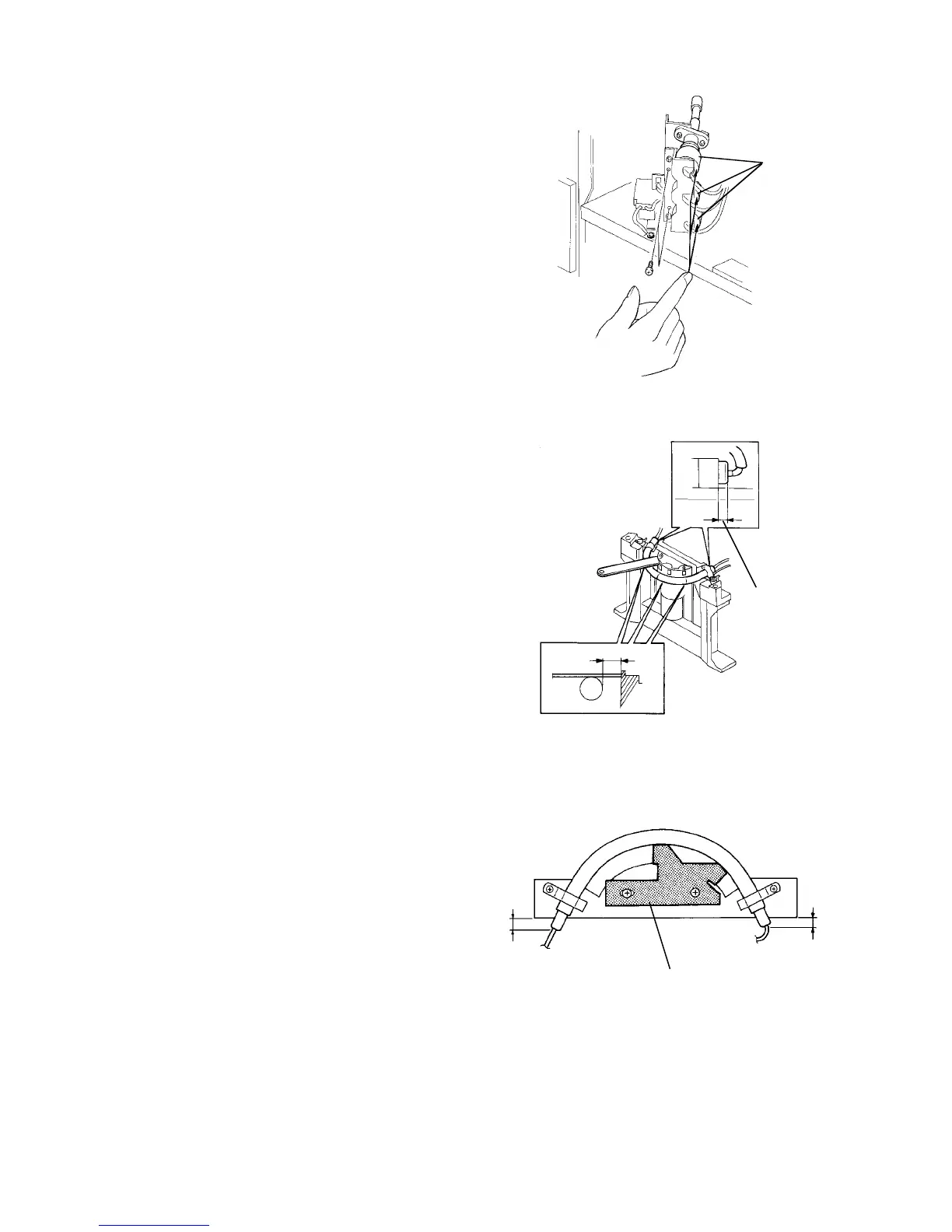

• To avoid xenon lamp damage, firmly fit the
xenon lamp connectors to the sockets.
Push each connector end with your fingers
as shown. Then tighten two screws.
• When reinstalling the xenon lamp in the
unit, position the lamp exactly as shown. If
the position is not correct, the life time of
the lamp might be reduced. Insufficient
light intensity will increase the lamp voltage
rapidly due to the process control.
• If the lamp positioning tool (P/N-A0289330)
is available, the lamp installation becomes
much easier. Fix the tool with the two
screws and install the xenon lamp while
pushing the lamp against the tool (see the
illustration to the right). At that time, be
sure that both the right and left edges of the
lamp ("a" in the illustration) are the same
length.
Xenon
lamp
connector
13.5 mm
Same length at
the right and
left edges.
Lamp positioning tool
a
a
