M095/M096/M099/M100 4-74 SM

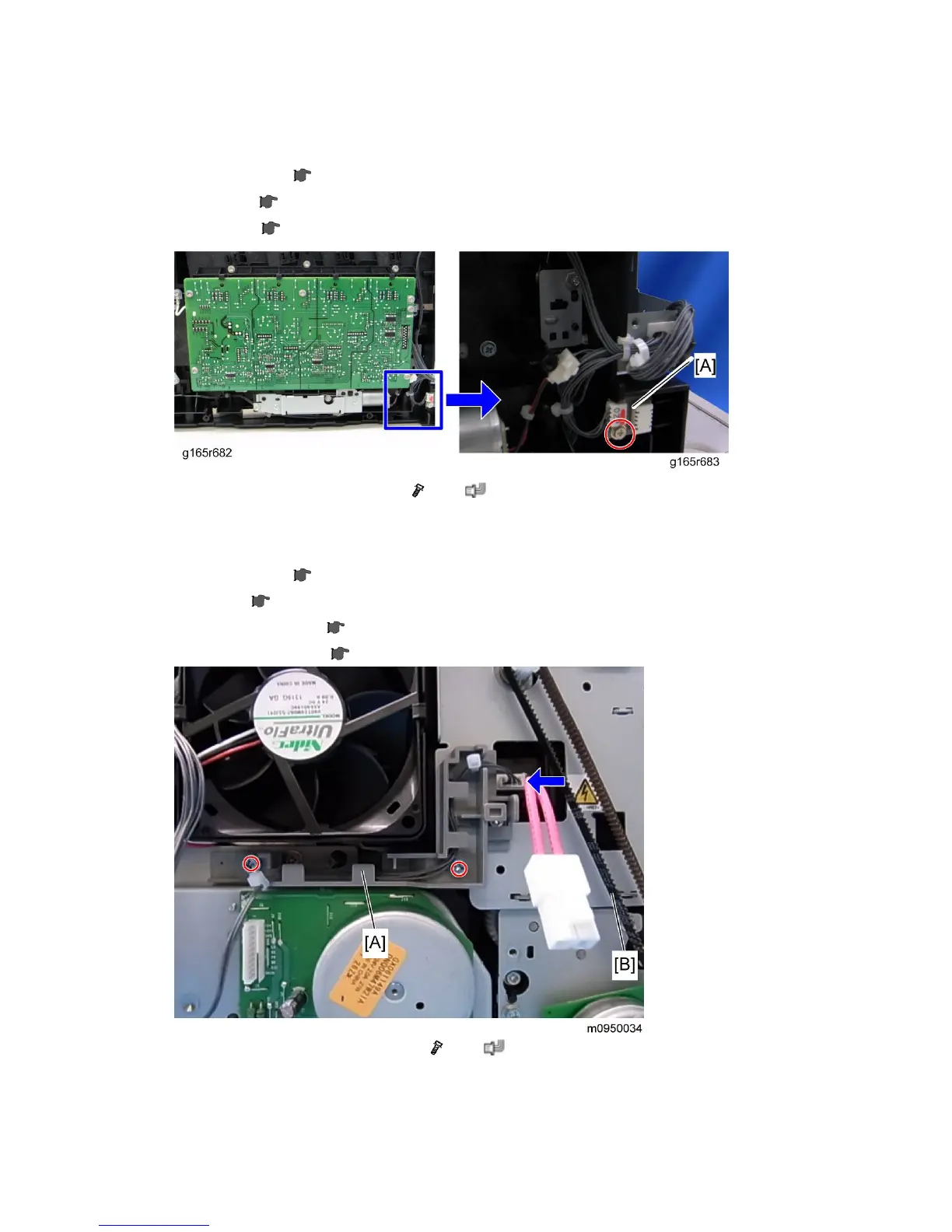

4.11.12 TEMPERATURE/HUMIDITY SENSOR
1. Operation panel ( p.4-6)
2. Rear cover (
p.4-5)
3. Right cover (
p.4-7)
4. Temperature/Humidity sensor [A] (
x 1, x 1)
4.11.13 DUPLEX MOTOR
1. Operation panel ( p.4-6)
2. Left cover (
p.4-8)
3. Interlock switch base (
p.4-63)
4. Fusing harness guide (
p.4-45)
5. Fusing thermistor harness guide [A] (
x 2, x 1)
6. Duplex timing belt [B]
