AIO Cartridge
SM 4-19 M095/M096/M099/M100
Replacement
and
Adjustment
4.5.2 BLACK AIO MOTOR
1. Left cover ( p.4-8)

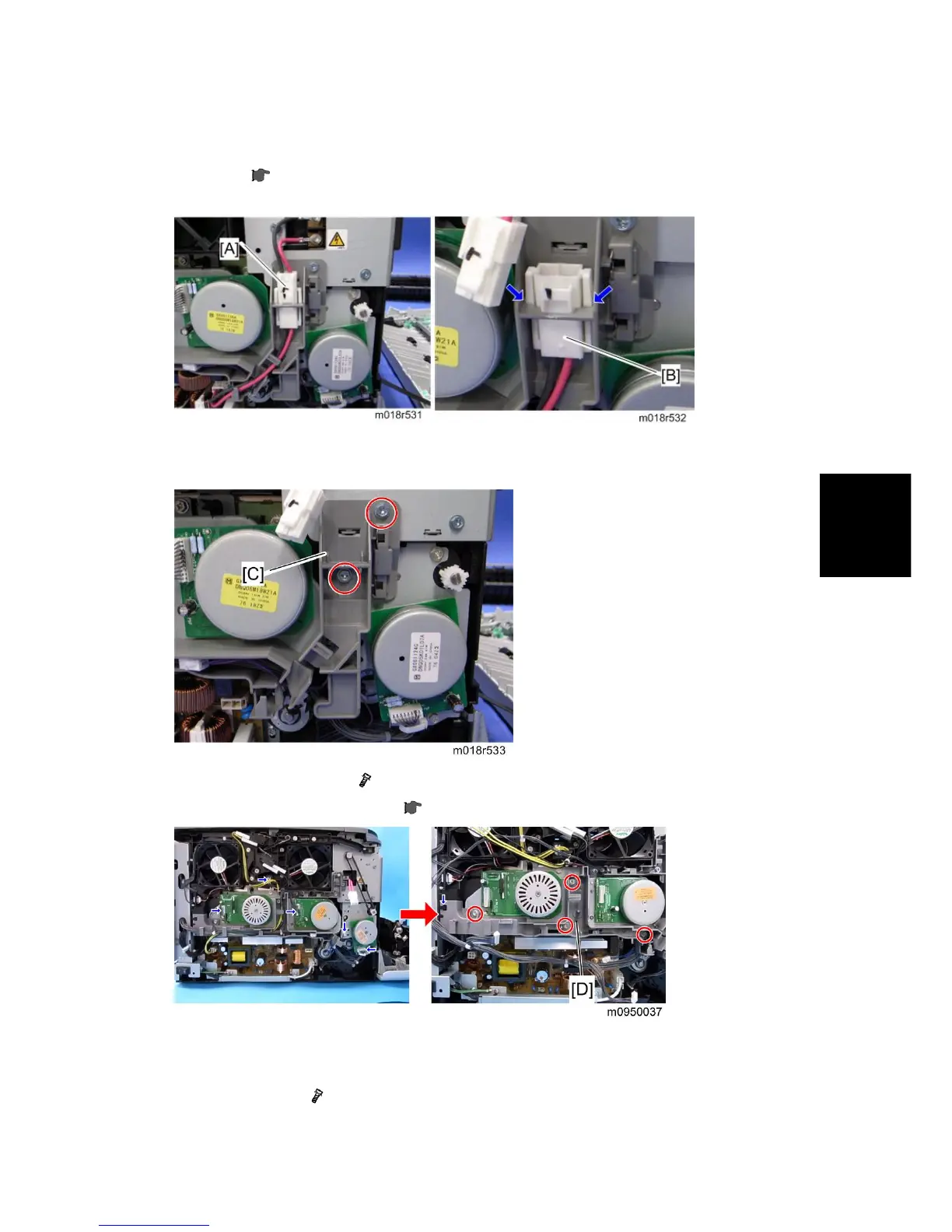

2. Disconnect the fusing connector [A] and remove the fusing relay harness [B] (hooks x 2).
3. Fusing harness guide [C] (
x 2)
4. Fusing thermistor harness guide (
p.4-74)
5. Disconnect the connectors shown by arrows in the above picture and release all harnesses
on the harness guide [D].
6. Harness guide [D] (
x 4, hook x 1)
