Ricoh M095 - 4.6 Image Transfer System Service

Image Transfer
SM 4-23 M095/M096/M099/M100
Replacement
and
Adjustment
4.6 IMAGE TRANSFER
4.6.1 IMAGE TRANSFER BELT UNIT
1. Remove all the AIO cartridges ( p.4-18).
2. Transfer unit (
p.4-33)

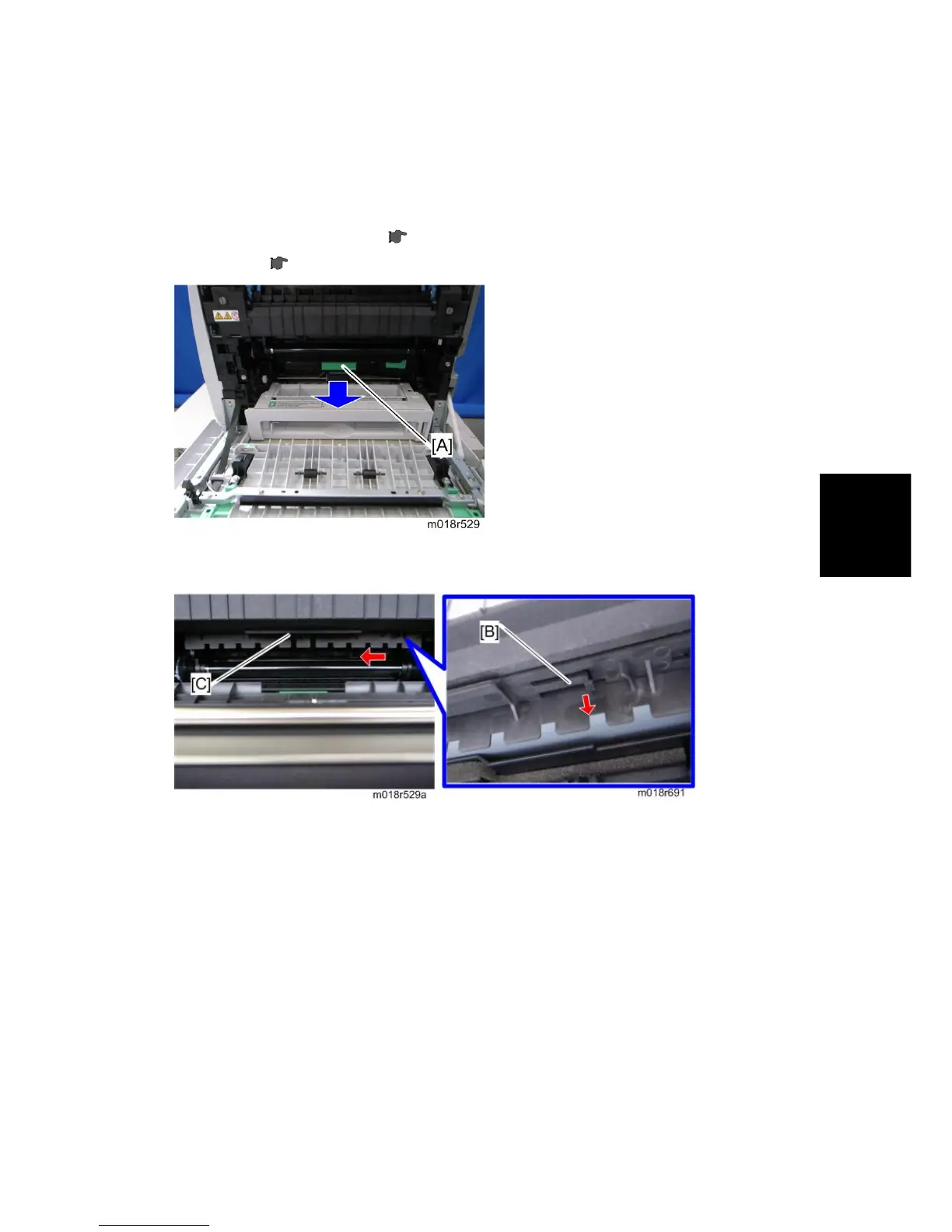

3. Pull out the waste toner bottle [A].
4. Release the hook [B] under the guide plate.
5. Move the guide plate [C] underneath the fusing unit to the left, and then remove it
