Ricoh M095 - Front Cover Unit; Right Cover

Exterior Covers
SM 4-9 M095/M096/M099/M100
Replacement
and
Adjustment
4.3.5 FRONT COVER UNIT
1. Rear cover ( p.4-5)
2. Operation panel (
p.4-6)
3. Transfer unit (
p.4-33)
4. Right cover (
p.4-7)

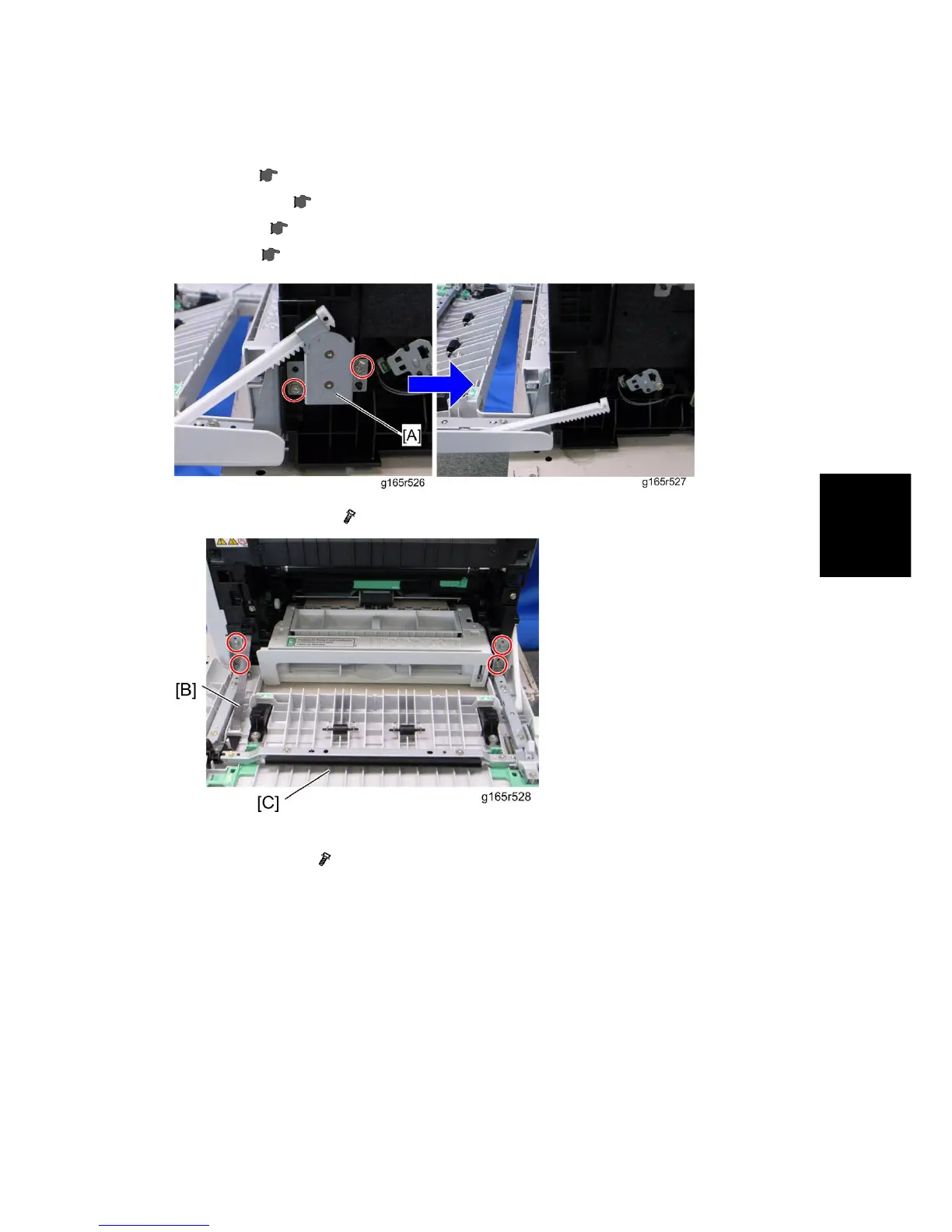

5. Cover link gear unit [A] (
x 2)
6. Release the belt [B]
7. Front cover unit [C] (
x 4)
