Exterior Covers
M095/M096/M099/M100 4-8 SM
4.3.4 LEFT COVER
1. Open the front cover.
2. Open the top cover.

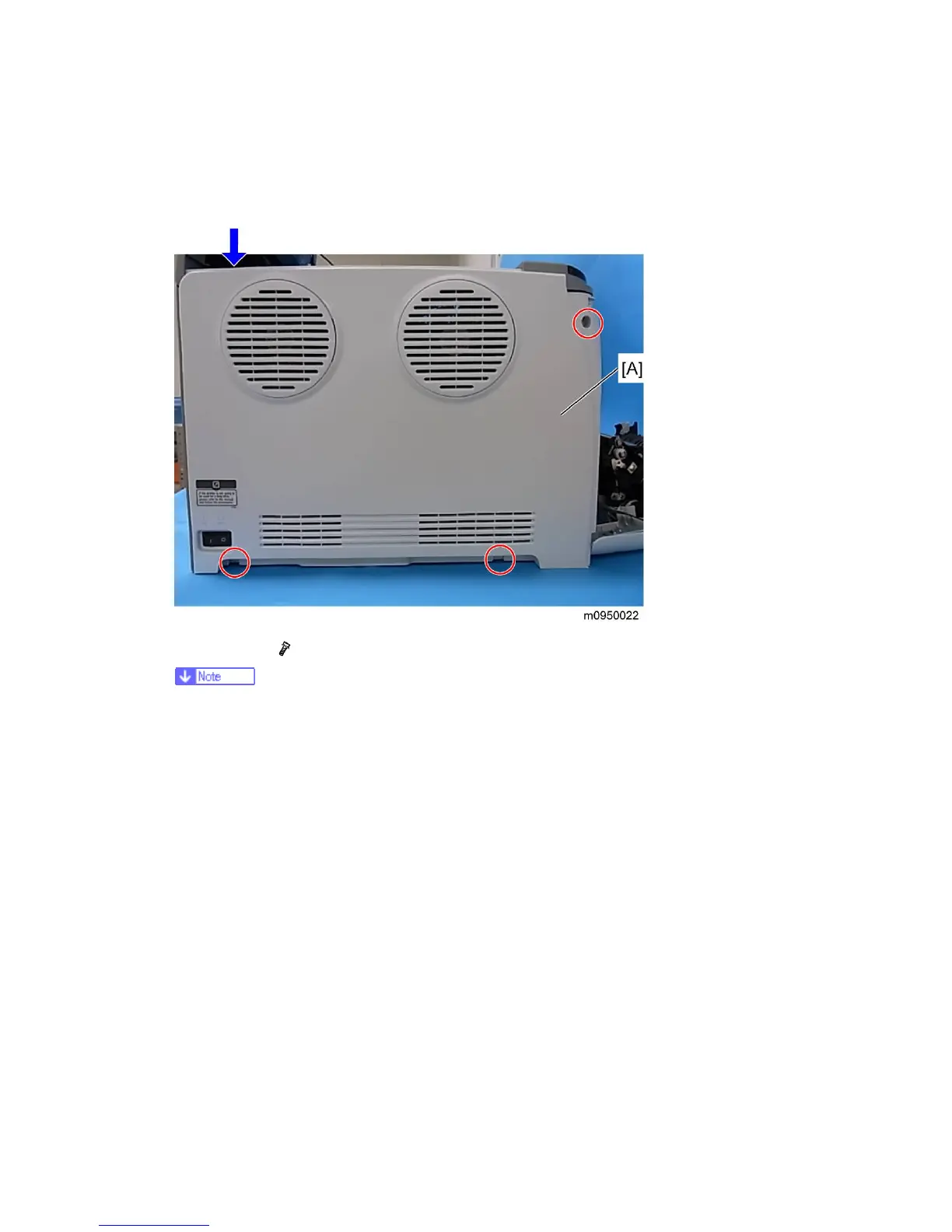

3. Left cover [A] (
x 3, hook at the arrow mark above)
Top front screw: M3 x 8, others: M4 x 10
Remove the rear panel and the operation panel in advance when you meet
difficulties in removing the left cover.
To Next Page
