4.11.5 FUSING FAN MOTOR
1. Operation panel ( p.4-6)
2. Rear cover (
p.4-5)
3. Left cover (
p.4-8)
4. Interlock switch base (
p.4-63)

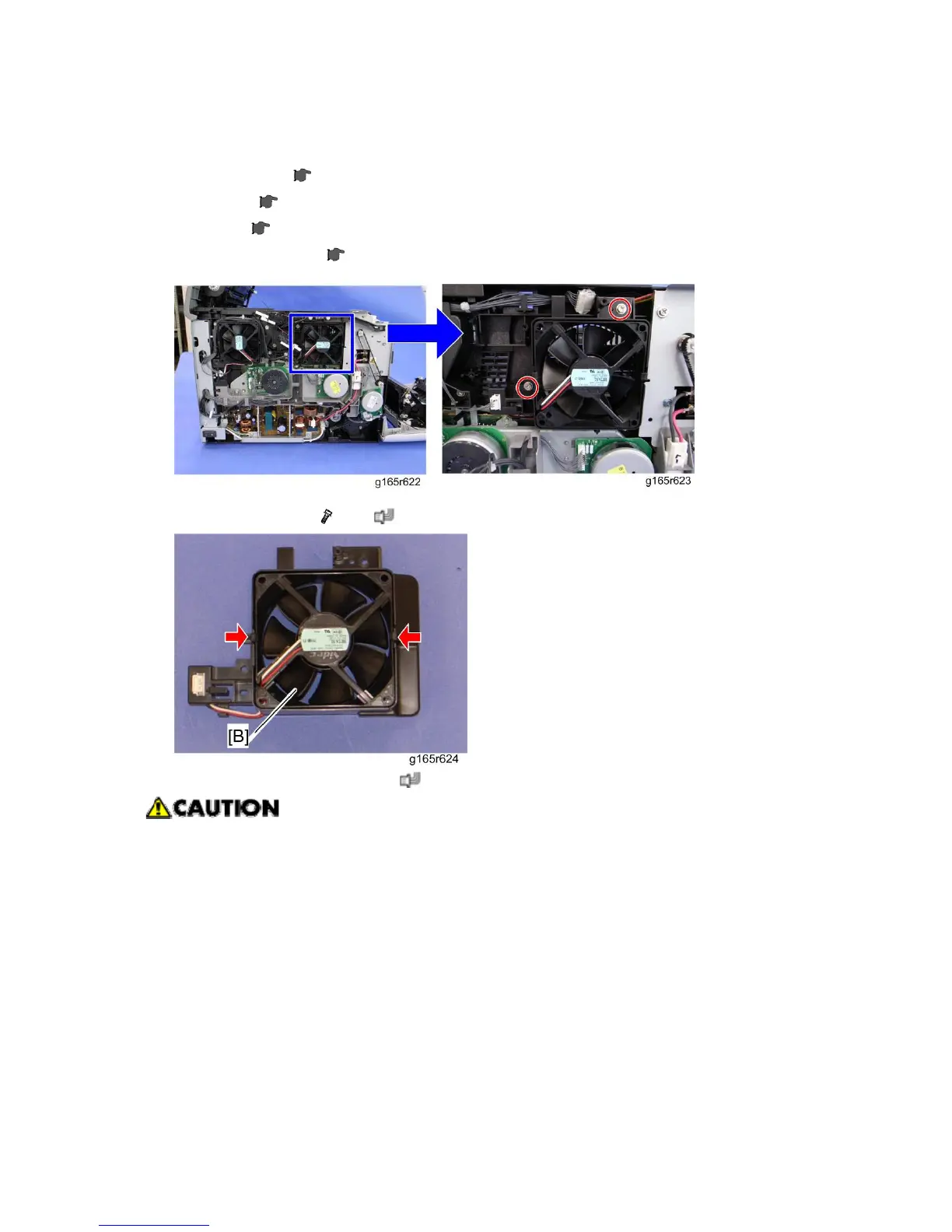

5. Fusing fan base [A] (
x 2, x 1)
6. Fusing fan motor [B] (hooks x 2,
x 1)
 Install the fusing fan motor with its decal facing the outside of the machine.
