By-pass Tray Cover Type M16
SM 2-24 D245/D246/D247

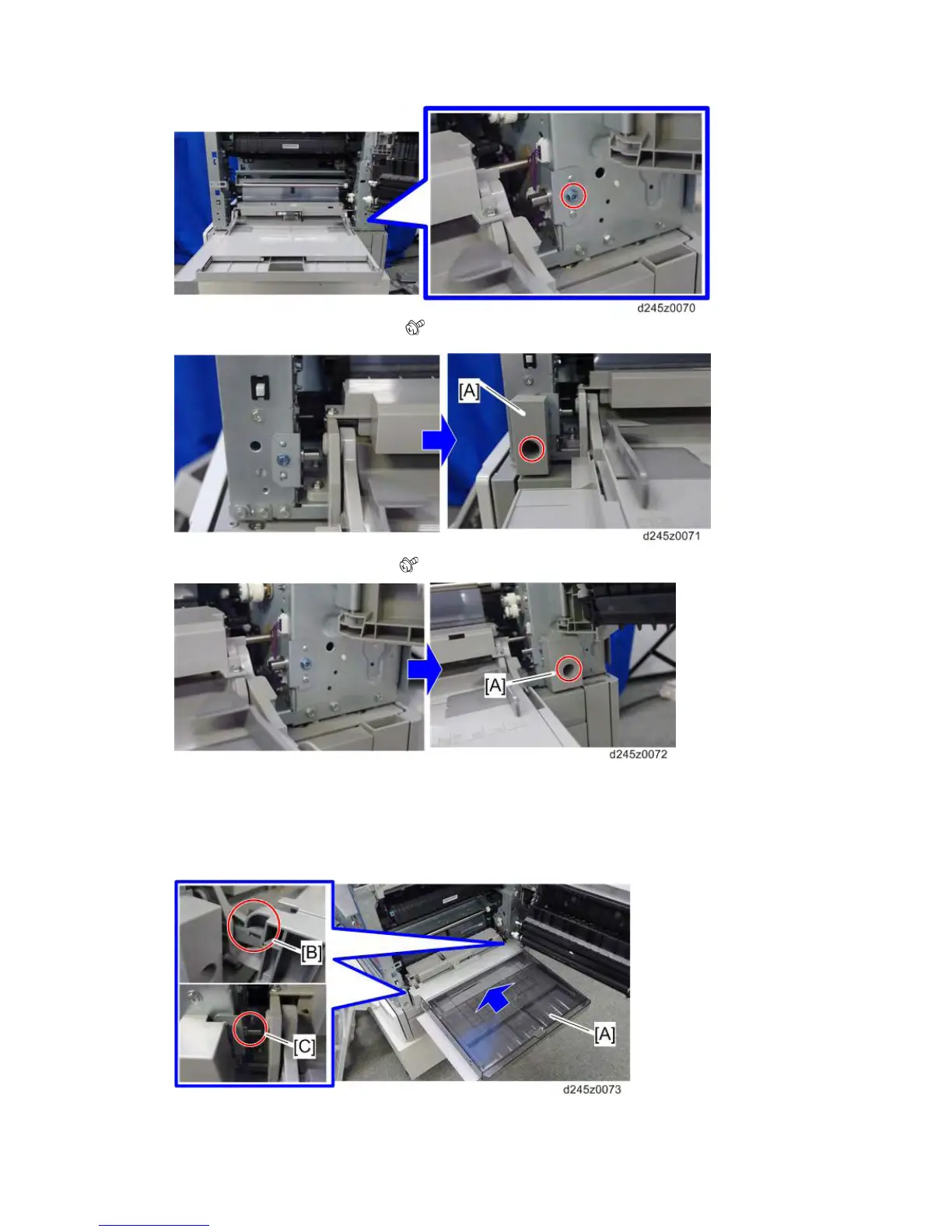

14. Attach the front stud cover [A] ( x 1: M3x8).
15. Attach the rear stud cover [A] (
x 1: M3x8).
16. Reassemble all covers.
17. Place the by-pass tray cover [A] on the by-pass tray.
Make sure that hooks [B] at front and rear side of the by-pass tray cover hold the front
and rear studs [C] on the machine.
18. Close the right door.
