Rigol DP832 Programming Guide

RIGOL Chapter 4 Programming Demos
4-4 DP800 Programming Guide

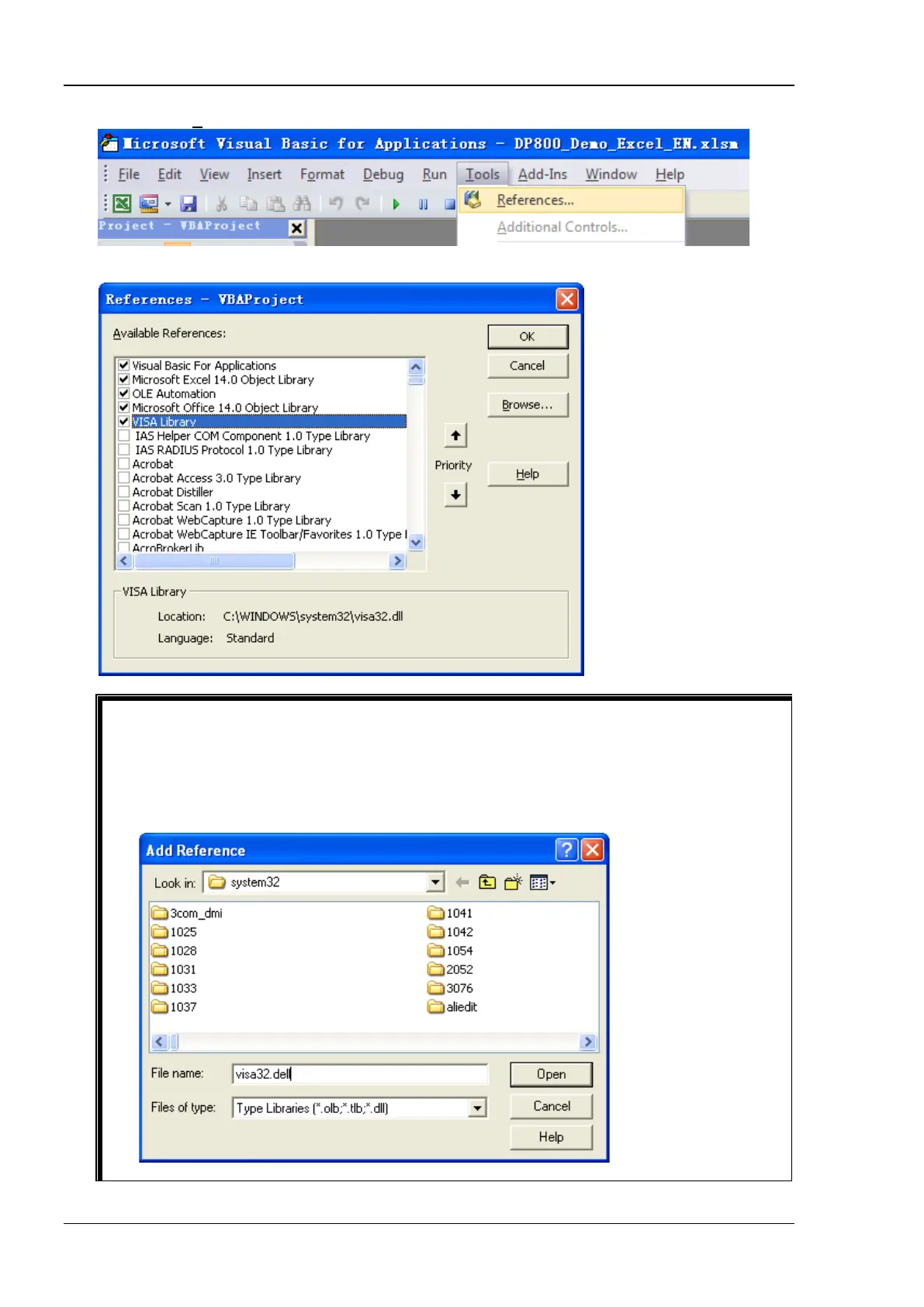

4 Select Tools(T) in the Microsoft Visual Basic menu bar and click References.
Select VISA Library in the pop-up dialog box and click OK to refer to the VISA Library.
Explanation:
If you cannot find VISA Library in the list at the left of the figure above, please follow the method
below to find it.
(1) Make sure that your PC has installed the NI-VISA library.
(2) Click Browse… at the right and set the search range to C:\WINDOWS\system32 and the
filename to visa32.dll, as shown in the figure below.

Rigol DP832 Specifications

General

Number of Outputs	3
Output Voltage Range CH1/CH2	0-30V
Output Voltage Range CH3	0-5V
Output Current Range CH1/CH2	0-3A
Output Current Range CH3	0-3A
Total Power	195 W
Power per Channel CH1/CH2	90 W
Power per Channel CH3	15 W
Voltage Resolution	1 mV
Current Resolution	1 mA
Interfaces	USB, RS232
Display	3.5 inch TFT LCD
