Rigol DP832 Programming Guide

RIGOL Chapter 4 Programming Demos
4-8 DP800 Programming Guide
LabVIEW Programming Demo
The program used in this demo: LabVIEW 2009
The functions realized in this demo: search for the instrument address, connect the instrument, send
command and read the return value.

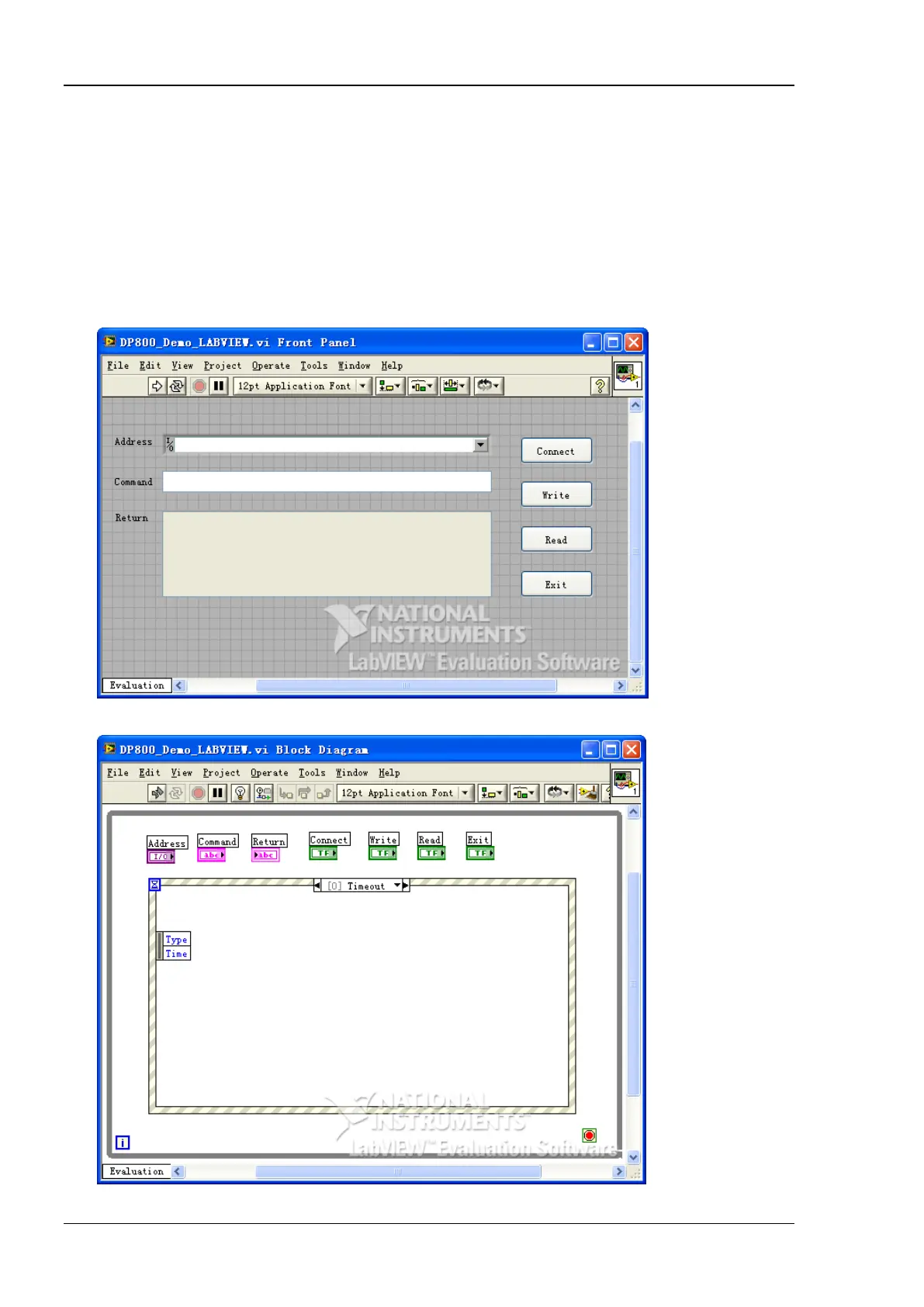

1 Run LabVIEW 2009, create a VI file and name it as DP800_Demo_LABVIEW.
2 Add controls in the front panel interface, including the Address bar, Command bar and Return bar
as well as the Connect, Write, Read and Exit buttons.
3 Click Show Block Diagram in the Window menu to create event structure.

Rigol DP832 Specifications

General

Number of Outputs	3
Output Voltage Range CH1/CH2	0-30V
Output Voltage Range CH3	0-5V
Output Current Range CH1/CH2	0-3A
Output Current Range CH3	0-3A
Total Power	195 W
Power per Channel CH1/CH2	90 W
Power per Channel CH3	15 W
Voltage Resolution	1 mV
Current Resolution	1 mA
Interfaces	USB, RS232
Display	3.5 inch TFT LCD
