Rigol DP832 Programming Guide

Chapter 4 Programming Demos RIGOL
DP800 Programming Guide 4-11
(4) Exit:

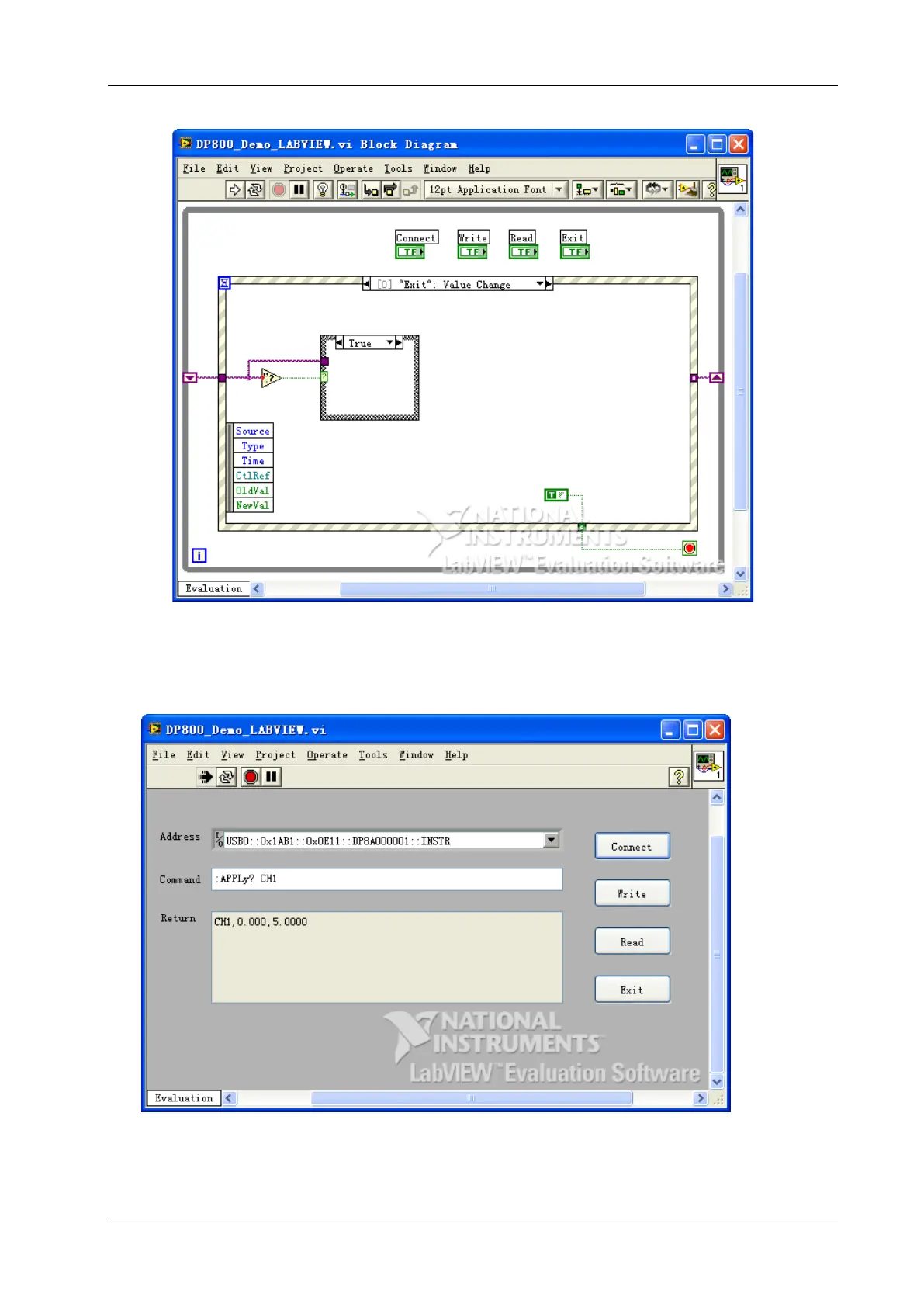

5 Run the program and the interface as shown in the figure below is displayed. Click the Address
dropdown box and select the VISA resource name; click Connect to connect the instrument; enter the
command into the Command textbox and click Write to write the command into the instrument. If
the command is a query command, click Read and the return value is displayed in the Return
textbox.

Rigol DP832 Specifications

General

Number of Outputs	3
Output Voltage Range CH1/CH2	0-30V
Output Voltage Range CH3	0-5V
Output Current Range CH1/CH2	0-3A
Output Current Range CH3	0-3A
Total Power	195 W
Power per Channel CH1/CH2	90 W
Power per Channel CH3	15 W
Voltage Resolution	1 mV
Current Resolution	1 mA
Interfaces	USB, RS232
Display	3.5 inch TFT LCD
