Rigol DP832 Programming Guide

Chapter 1 Programming Overview RIGOL
DP800 Programming Guide 1-3
(4) Use the GPIB interface:
 Connect the USB-GPIB interface converter to the USB Device interface at the rear panel of
DP800 to extend a GPIB interface.
 Connect the instrument with your PC using GPIB cable.
 Press Utility  I/O  GPIB to set the GPIB address of the instrument.
3 Check whether the connection is successful

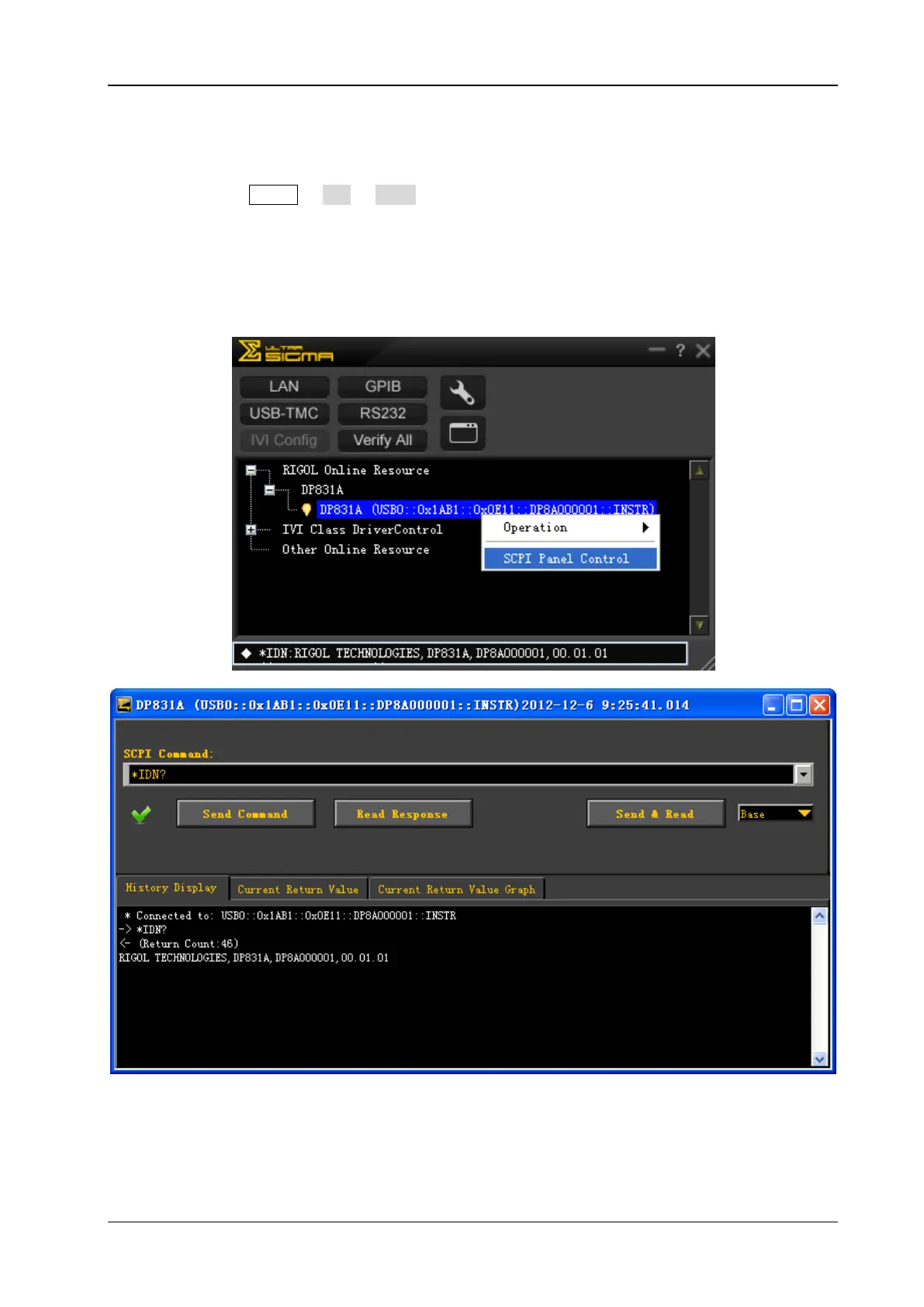

Run the Ultra Sigma, search for resource, right-click the resource name and select “SCPI Panel Control”
in the pop-up menu. Enter the correct command in the pop-up SCPI control panel and click Send
Command, Read Response or Send&Read to check whether the connection is successful, as
shown in the figure below (take the USB interface as an example).

Rigol DP832 Specifications

General

Number of Outputs	3
Output Voltage Range CH1/CH2	0-30V
Output Voltage Range CH3	0-5V
Output Current Range CH1/CH2	0-3A
Output Current Range CH3	0-3A
Total Power	195 W
Power per Channel CH1/CH2	90 W
Power per Channel CH3	15 W
Voltage Resolution	1 mV
Current Resolution	1 mA
Interfaces	USB, RS232
Display	3.5 inch TFT LCD
