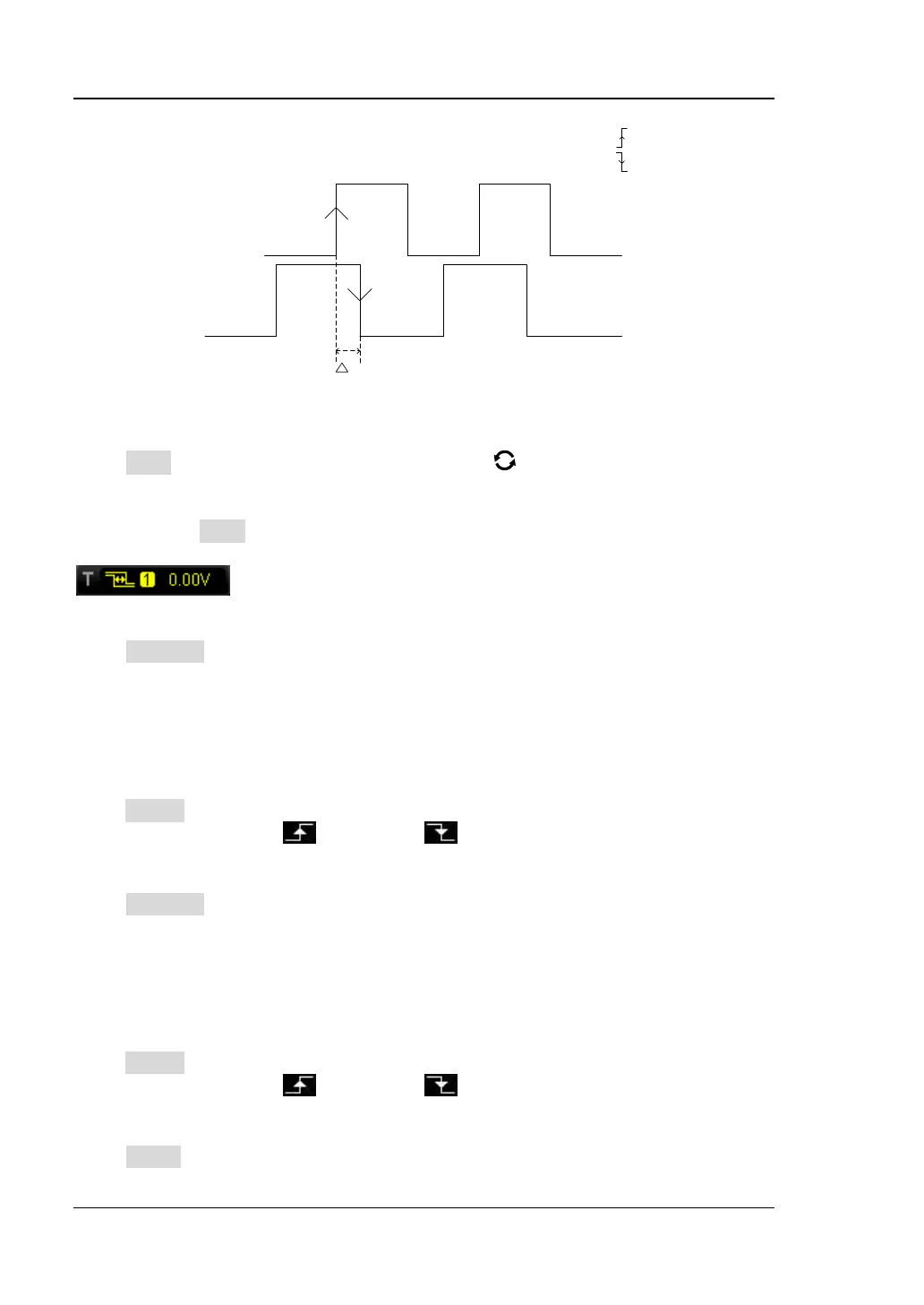

Figure 5-10 Delay Trigger
Trigger Type:
Press Type, and then use the multifunction knob to select "Delay". Press down
the knob to select the trigger type. Then, the current trigger setting information is
displayed at the upper-right corner of the screen, as shown in the figure below. You
can also press Type continuously to select the trigger type or enable the touch
screen to tap the desired trigger type and select it.
Source A:
Press SourceA to select CH1-CH4 or D0-D15 as the trigger source of Source A. For
details, please refer to descriptions in "Trigger Source". The current trigger source
is displayed at the upper-right corner of the screen.
Note: Only when we select the channel (that has been input with signals) as the
trigger source, can we obtain a stable trigger.
Edge A:
Press EdgeA continuously to select the trigger edge type of Source A in Delay trigger.
It can be set to "Rising" or "Falling" .
Source B:
Press SourceB to select CH1-CH4 or D0-D15 as the trigger source of Source B. For
details, refer to descriptions in "Trigger Source". The current trigger source is
displayed at the upper-right corner of the screen.
Note: Only when we select the channel (that has been input with signals) as the
trigger source, can we obtain a stable trigger.
Edge B:
Press EdgeB continuously to select the trigger edge type of Source B in Delay trigger.
It can be set to "Rising" or "Falling" .
Trigger Condition:
Press When to set the time limit condition of Delay trigger.
