Rigol DS7024 - Front Panel Overview

Chapter 1 Quick Start RIGOL
MSO7000/DS7000 User Guide 1-11
Front Panel Overview

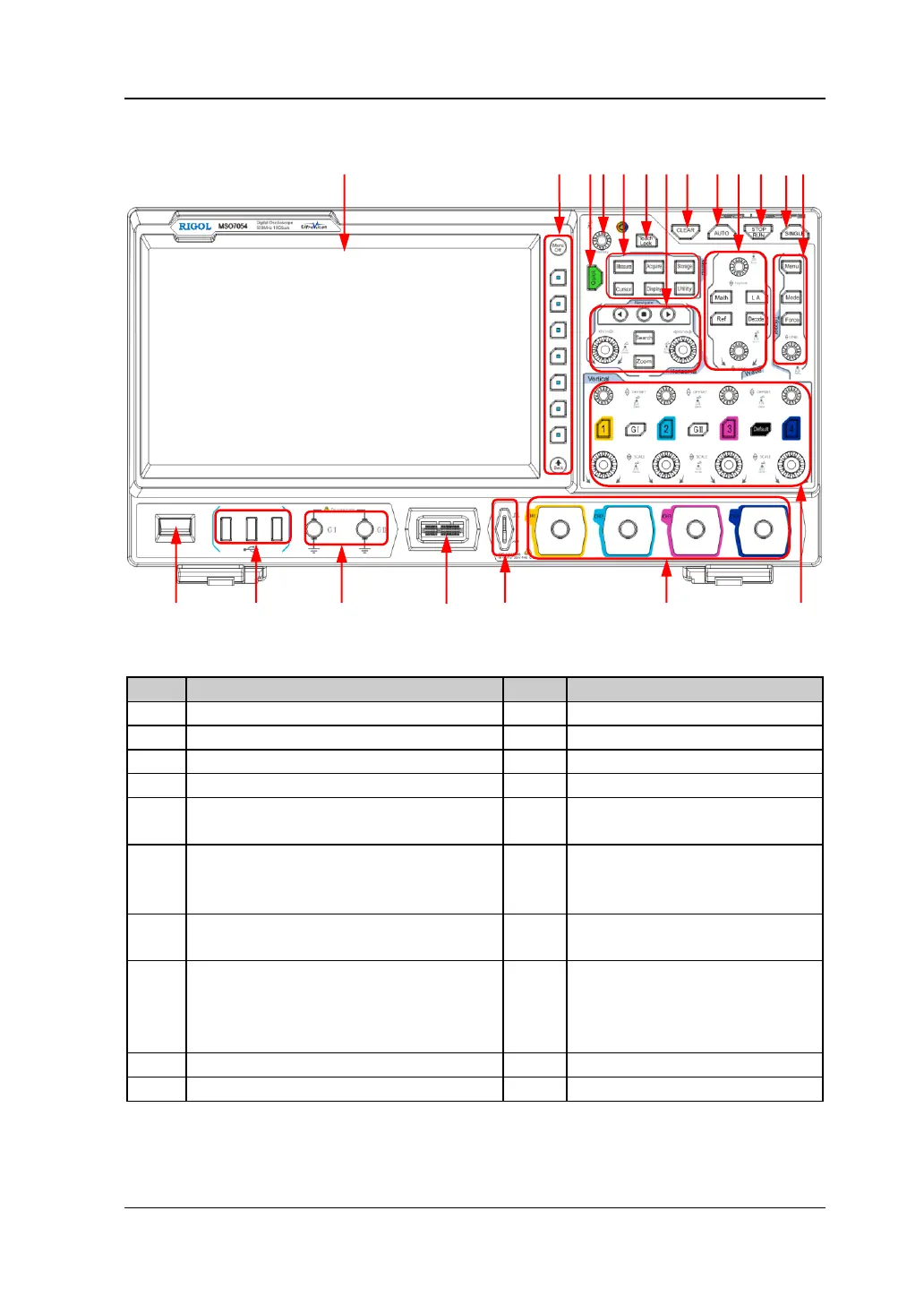

Figure 1-13 Front Panel
Table 1-1 Front Panel Description
No.
Description
No.
Description
1
Capacitive Touch Screen
11
RUN/STOP Key
2
Function Menu Operation Keys
12
Single Trigger Control Key
3
Quick Key (Shortcut Key)
13
Trigger Control System
4
Multifunction Knob
14
Vertical Control System
5
Common Operation Keys
15
Analog Channel Input
Terminals
6
Touch Lock Key
16
Probe Compensation Signal
Output Terminal/Ground
Terminal
7
Horizontal Control System
17
Digital Channel Input
Interface
[1]
8
CLEAR Key
18
Dual-channel
Function/Arbitrary
Waveform Generator Output
Terminals
[2]
9
Auto Waveform Display Key
19
USB HOST Interface
10
Waveform Control System
20
Power Key
Note:
[1]
This function is only available for the MSO7000 model.
Note:
[2]
This function is only available for the MSO7000 model installed with the
Function/Arbitrary Waveform Generator option.
1 2 3 4 5 6 7 8 9 10 11 12 13
20 19 18 17 16 15 14
