Chapter 17 Function/Arbitrary Waveform Generator (MSO7000 Option) RIGOL
MSO7000/DS7000 User Guide 17-9

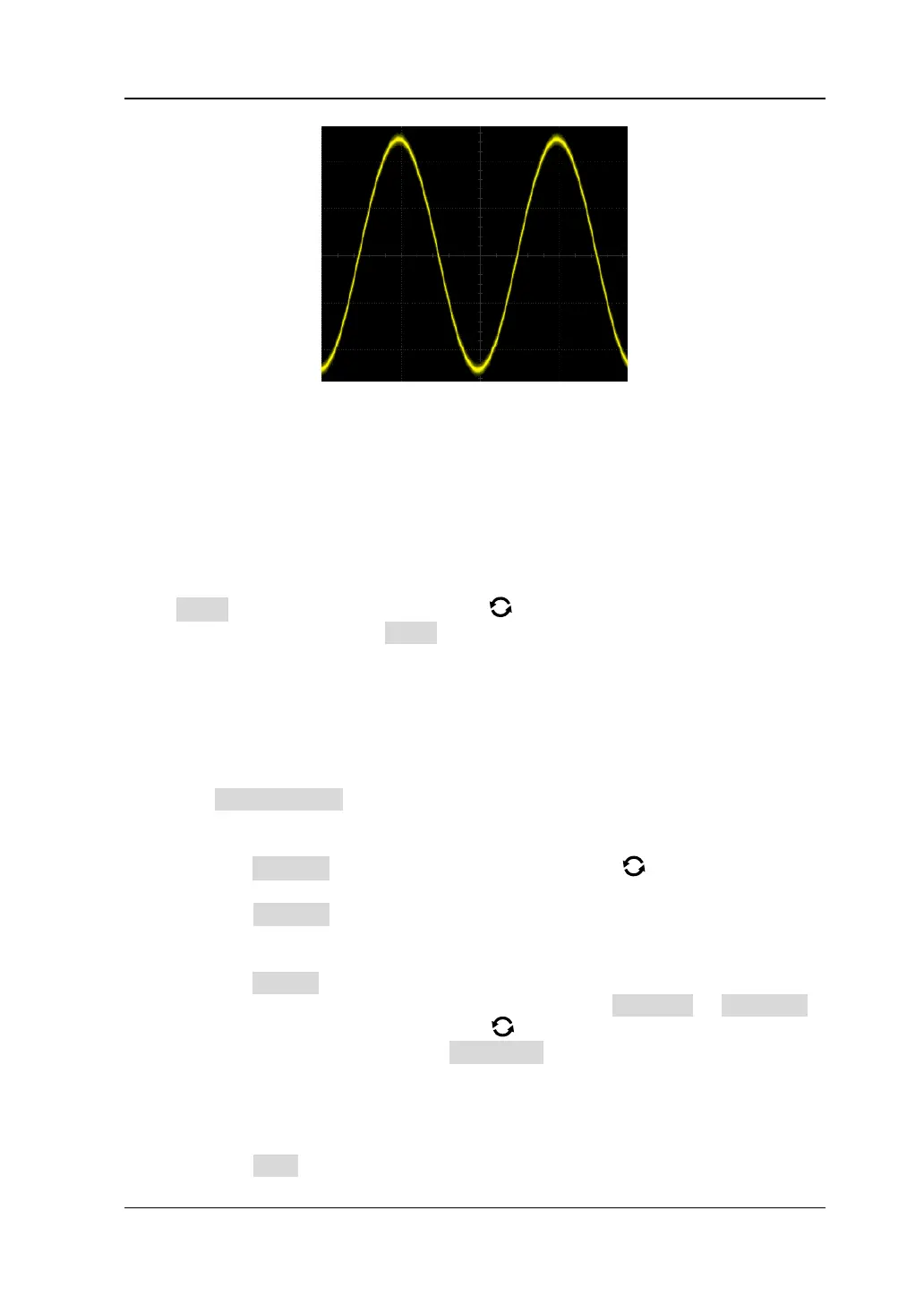

Figure 17-9 Haversine
To Output the Arbitrary Waveform
MSO7000 series oscilloscope allows you to define the arbitrary waveform and save it
to the internal or external memory. The user-defined waveform can contain 2 to
16,384 data points (i.g. 2 pts to 16 kpts).
Press Wave, rotate the multifunction knob to select "Arb". Press down the knob
to select it. You can also press Wave continuously or enable the touch screen to
select it. At this time, you can set the parameters for the arbitrary waveform.
To Load the Channel and Waveform
1. Load the Channel
Press Load from CH to enter the channel loading menu. You can set the
channel signal required to be loaded.
⚫ Channel selection
Press Channel and rotate the multifunction knob to select the desired
channel (CH1-CH4), and then press down the knob to select it. You can also
press Channel continuously or enable the touch screen to select it.
⚫ Set the waveform range
Press Region continuously to set the waveform in the "Cursor" or "Screen"
region for load. When "Cursor" is selected, press Cursor A or Cursor B
and rotate the multifunction knob to adjust the positions of the two
cursors respectively; or press Cursor AB and rotate the knob to adjust the
positions of cursors A and B at the same time to determine the waveform
range.
⚫ Load
Press Load to load the set channel signal.
