User Interface
MSO7000/DS7000 series has a 10.1-inch WSVGA (1024× 600) LCD, with 256 level
gray-scale display. The user interface displays the acquired waveforms, the setting
information, and the measurement results.

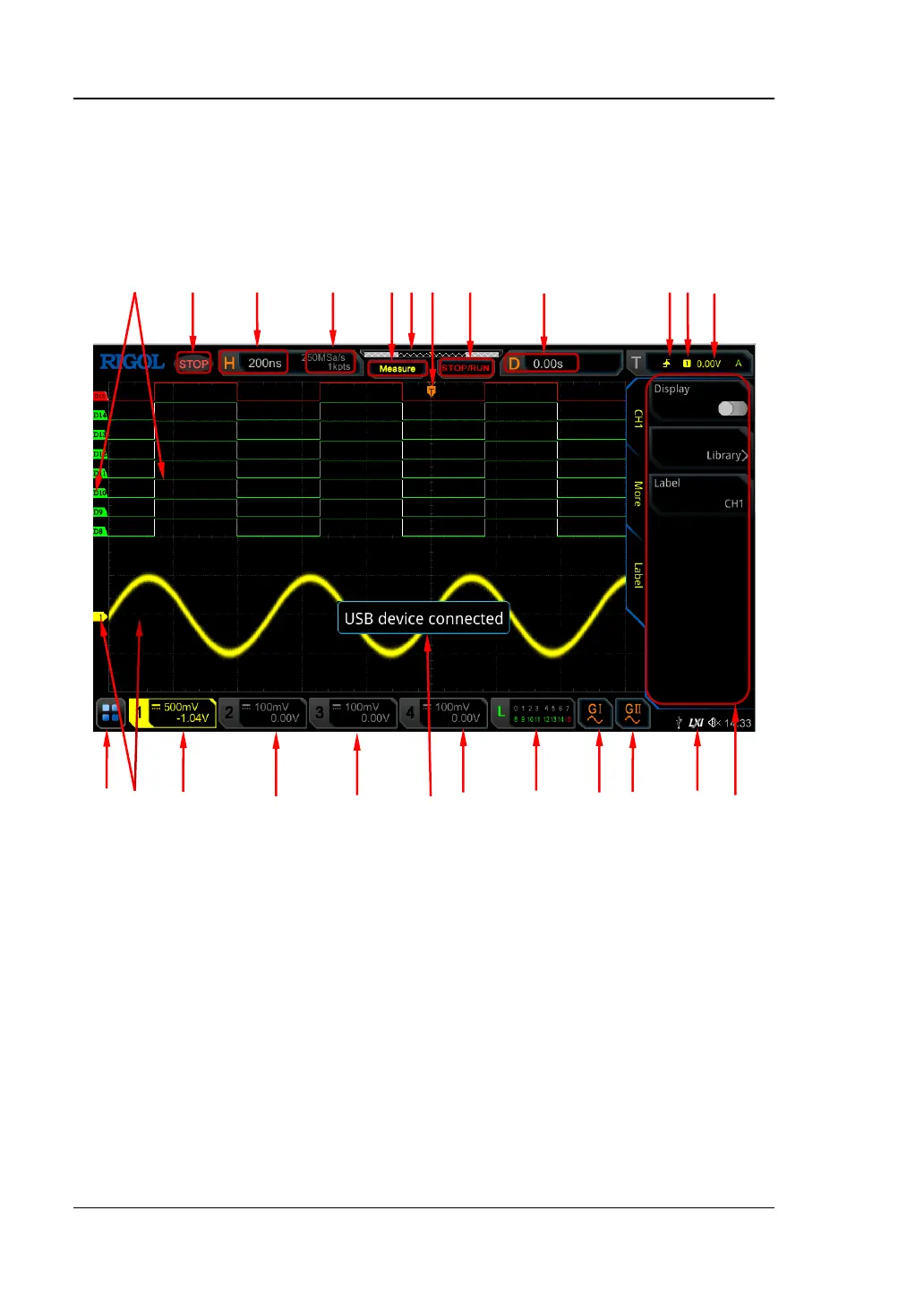

Figure 1-15 User Interface
1. Digital Channel Label/Waveform
The logic high and low level of the digital waveform are displayed in green. Its
edge is displayed in white. The color of the currently selected waveform of the
digital channel is consistent with that of the channel label, being displayed in red.
The grouping setting function under the logic analyzer function menu can divide
the digital channels into 4 channel groups. The channel label of the same
channel group is displayed in the same color; different channel groups are
marked with different colors.
Note: This function is only available for the MSO7000 model.
2. Operating Status
Available states include RUN, STOP, T’D (triggered), WAIT, and AUTO.
