Chapter 5 To Trigger the Oscilloscope RIGOL
MSO7000/DS7000 User Guide 5-53
Select Source A or Source B:
Press Source A or Source B, then rotate the multifunction knob to select the
desired source, and then press down the knob to select the source. You can also
press Source A Source B continuously to select the trigger source or enable the
touch screen to tap the desired trigger source and select it. The available sources
include CH1-CH4. The zone name color and the zone color are the same as the color
of the selected source channel.
Set the conditions for Trigger zone A and Trigger zone B
Press Zone A or Zone B , rotate the multifunction knob to select "Intersect" or
"Not intersect", then press down the knob to select it. You can also press Zone A or
Zone B continuously to select the condition, or enable the touch screen to tap the
desired condition and select it.

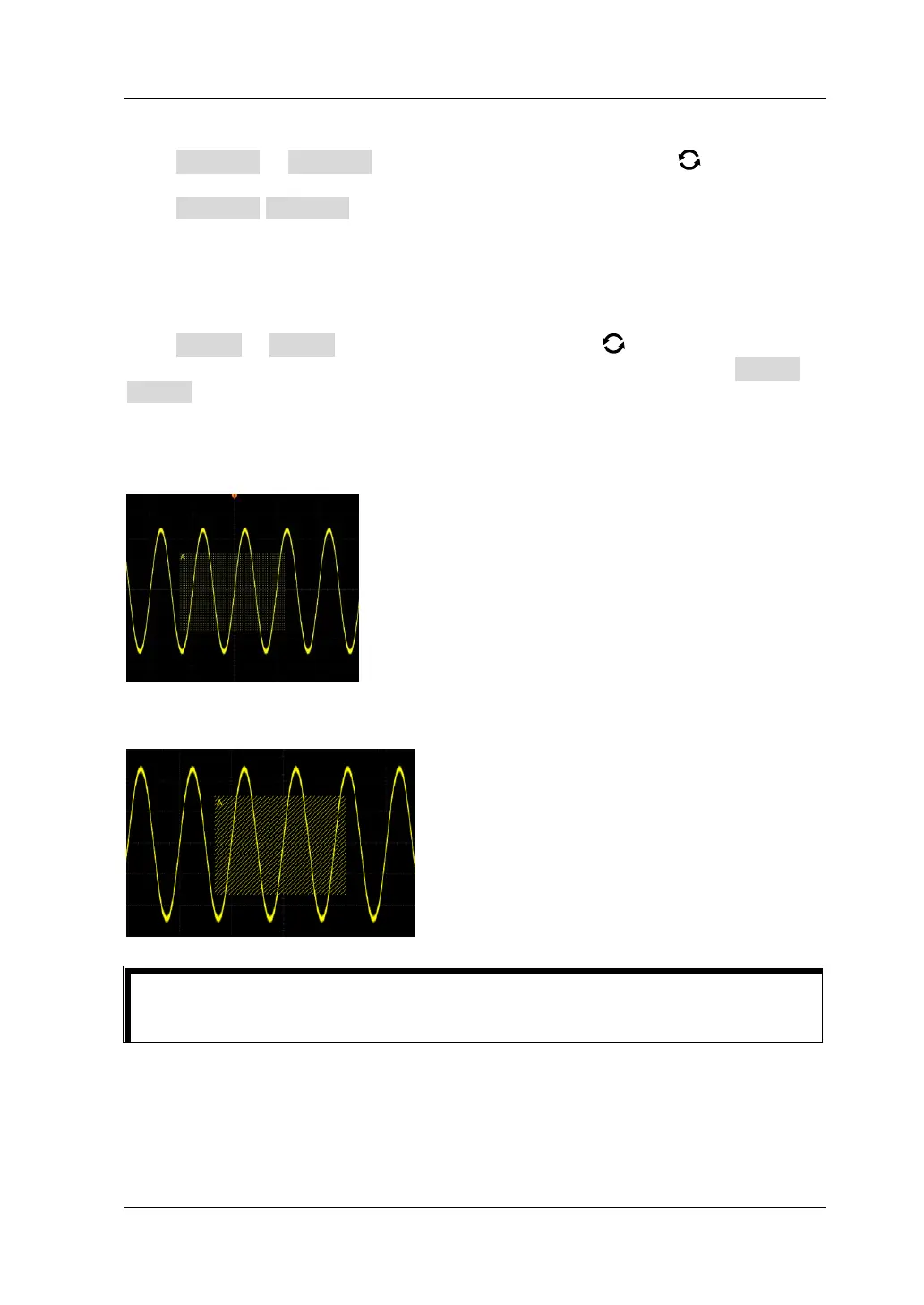

If you enable Zone A, select CH1 as Source A, and select "Intersect" as the condition,
as shown in the figure below.
If you enable Zone A, select CH1 as Source A, and select "Not intersect" as the
condition, the following figure is displayed.
