RIGOL Chapter 11 Protocol Decoding

11-18 MSO7000/DS7000 User Guide

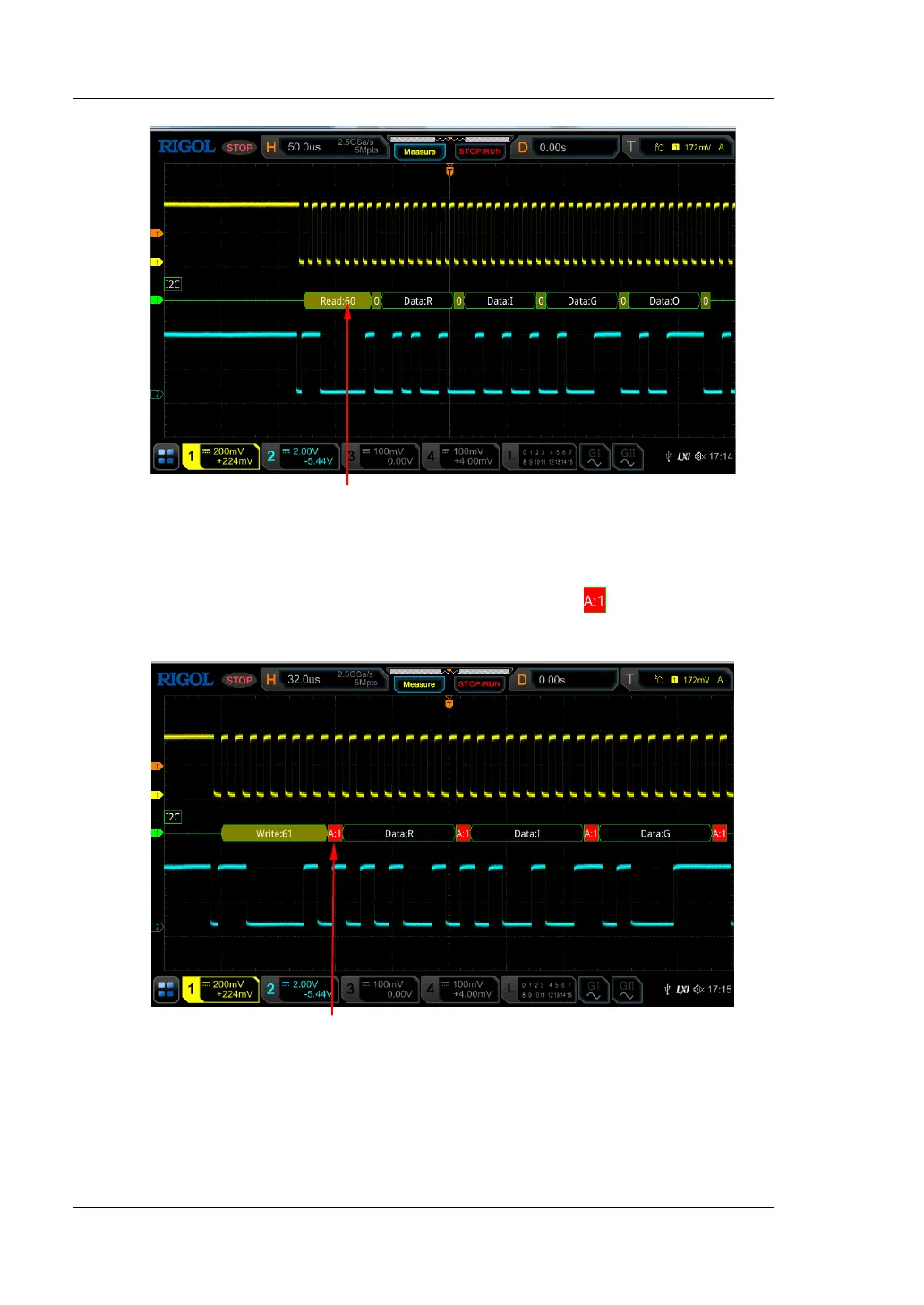

7． Error expressions in decoding

In I2C decoding, when ACK (acknowledgement) is 1, ACK error occurs. When

when the detected ACK is 1, red error report information (the display form is

related to the value of the horizontal time base) is dispalyed.

The detected ACK is 1

Address Information (Read Address)
