Rion VM-56 - Connection to a Data Recorder (DA-21), and Other Device

24
Preparations
OUTPUT
X
Y
Z
BNC connector
OUTPUT
connectors
Open
the side cover
BNC - Pin output cord CC-24
To input connector
on data recorder (DA-21)
Connection to a data recorder (DA-21), and other
device

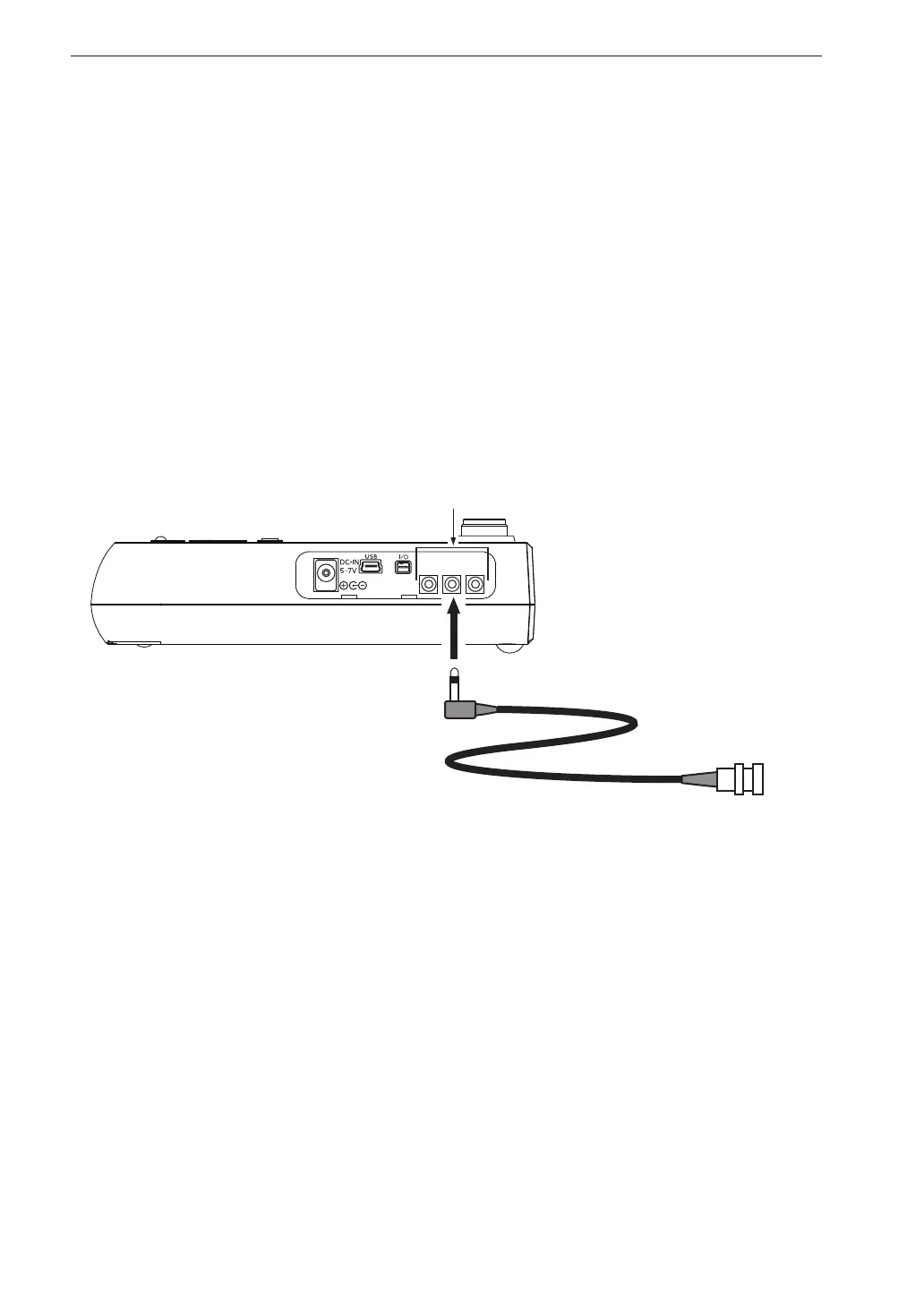

Connect the OUTPUT connector on the right side of the VM-56 with an in-
put connector of data recorder (DA-21 and other device), using the optional
BNC - Pin output cord CC-24 as shown below. The performance of other
cables is not guaranteed.
To make settings for signal output ON/OFF, use the Display/ I/O screen. (Set
[Output] to “ON”.)
