Module Addressing and Configuration with MicroLogix 1500 B-5

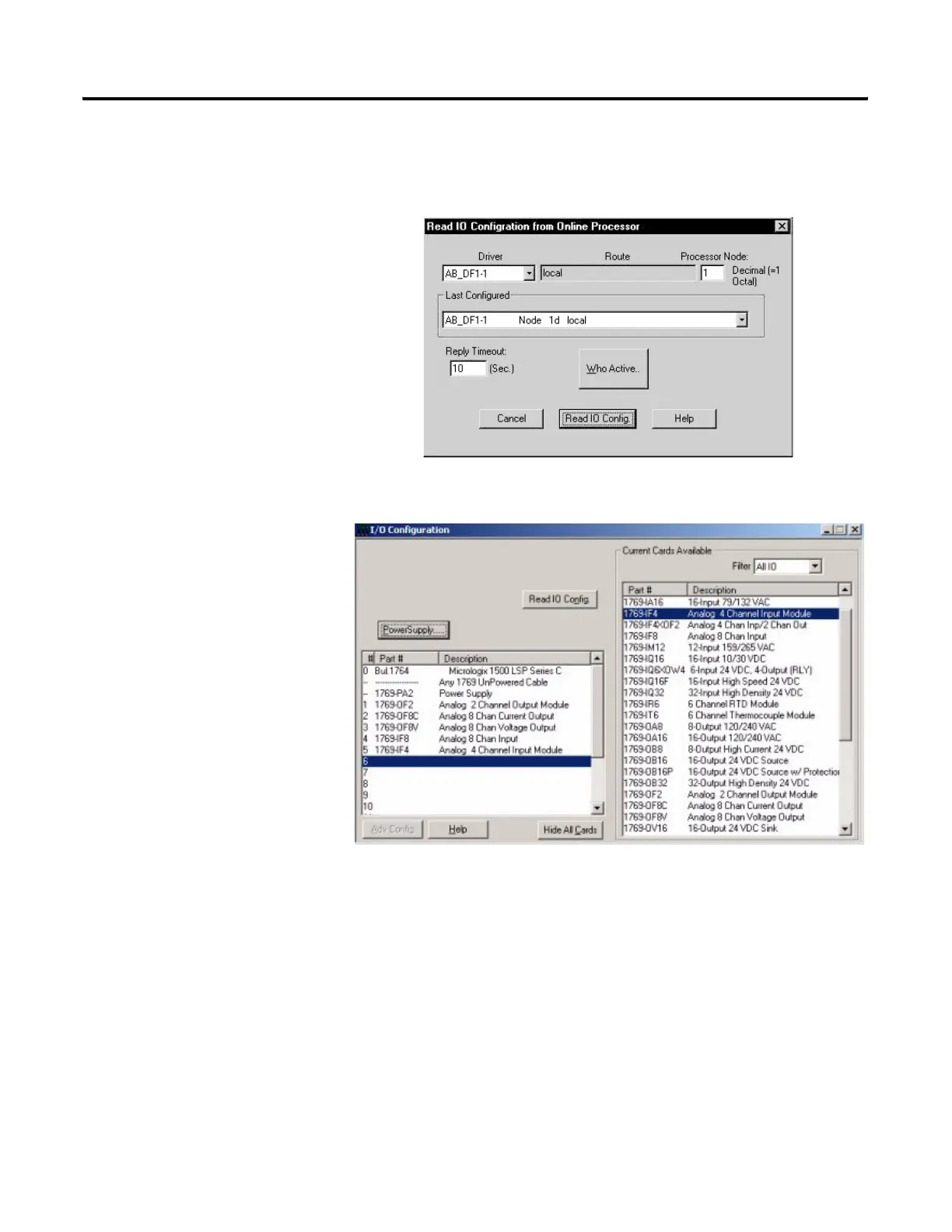

A communications dialog appears, identifying the current communications
configuration so that you can verify the target controller. If the
communication settings are correct, click on Read IO Config.
The actual I/O configuration is displayed. In this example, a second tier of
I/O is attached to the MicroLogix 1500 processor.
