Publication 1769-UM002B-EN-P - July 2005
B-4 Module Addressing and Configuration with MicroLogix 1500
Configuring Analog I/O
Modules in a MicroLogix
1500 System
This example takes you through configuring your 1769 analog input and
output modules with RSLogix 500 programming software. This application
example assumes your input and output modules are installed as expansion
I/O in a MicroLogix 1500 system, and that RSLinx™ is properly configured
and a communications link has been established between the MicroLogix
processor and RSLogix 500.

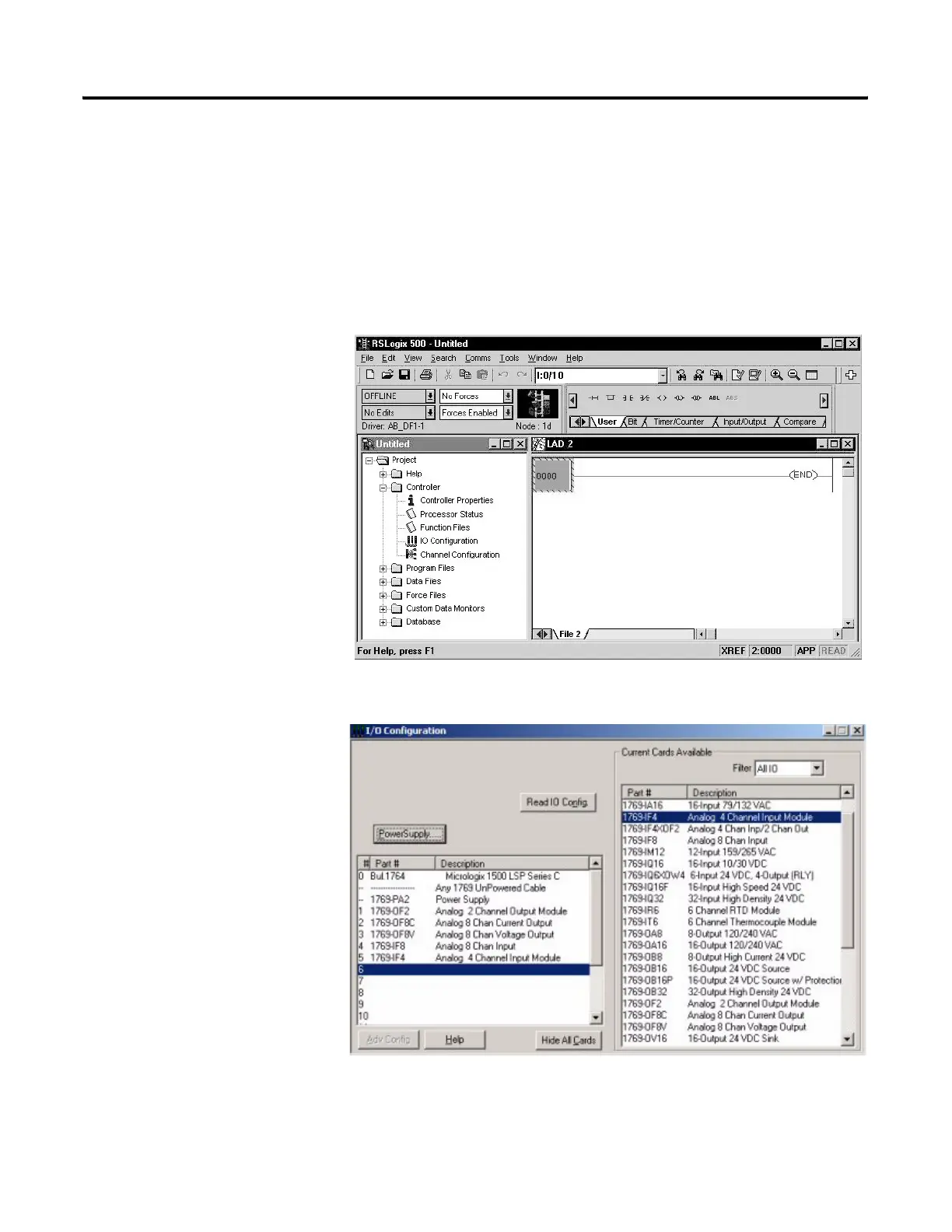

Start RSLogix and create a MicroLogix 1500 application. The following screen
appears:
While offline, double-click on the IO Configuration icon under the controller
folder and the following IO Configuration screen appears.
This screen allows you to manually enter expansion modules into expansion
slots, or to automatically read the configuration of the controller. To read the
existing controller configuration, click on the Read IO Config button.
