Installation and Wiring 2-15
Labeling the Terminals
A removable, write-on label is provided with the module. Remove the label
from the door, mark the identification of each terminal with permanent ink,
and slide the label back into the door. Your markings (ID tag) will be visible
when the module door is closed.
Figure 2.8 Terminal Labels
Removing the Finger-Safe Terminal Block
When wiring field devices to the module, it is not necessary to remove the
terminal block. If you remove the terminal block, use the write-on label on the
side of the terminal block to identify the module slot location and type. RTB
position can be indicated by circling either the ‘R’ for right side or ‘L’ for left
side.

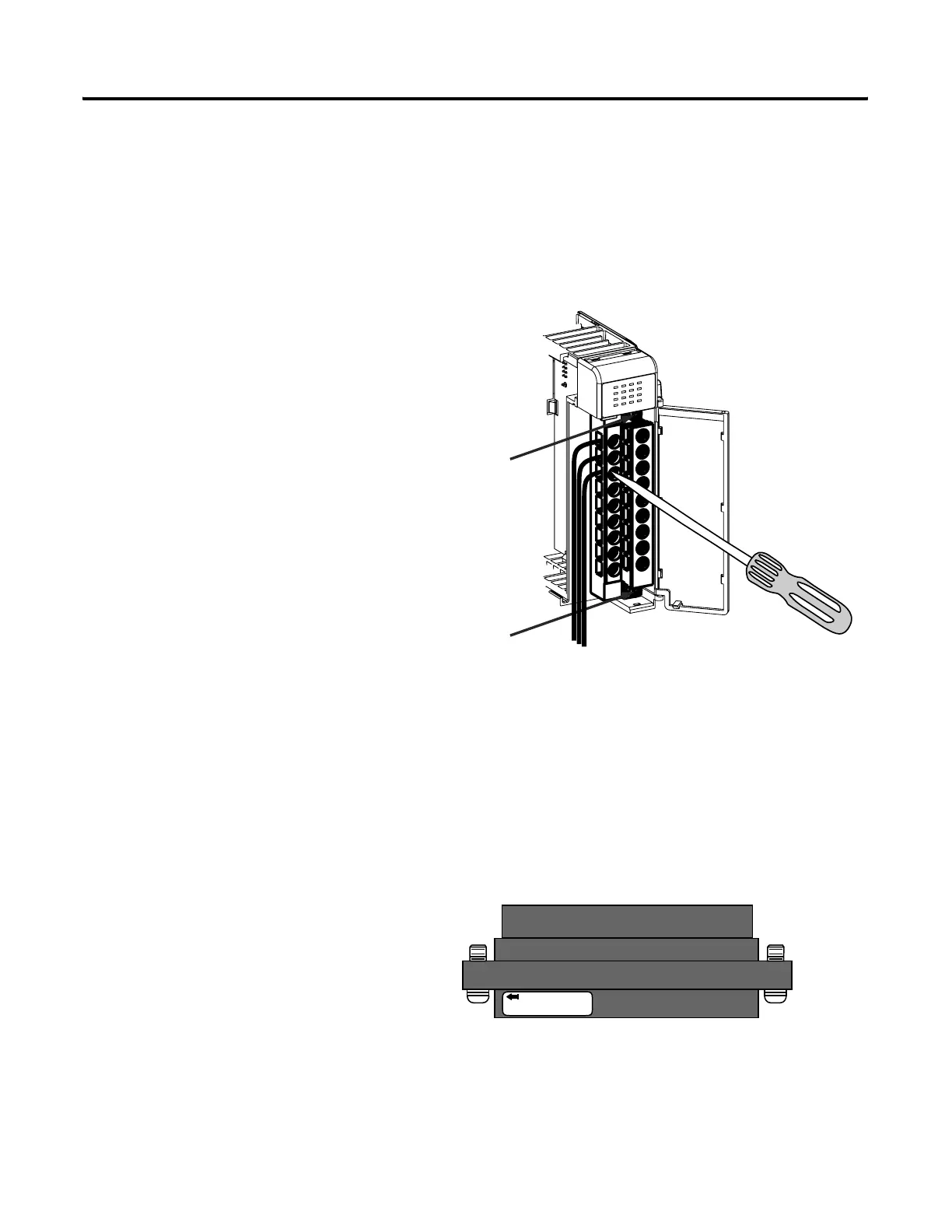

Figure 2.9 Finger-Safe Terminal Block
To remove the terminal block, loosen the upper and lower retaining screws.
The terminal block will back away from the module as you remove the screws.
When replacing the terminal block, torque the retaining screws to 0.46 Nm
(4.1 in-lbs).
wiring the
finger-safe
terminal block
upper retaining screw
lower retaining screw
SLOT # _____
MODULE TYPE ______
