Rockwell Automation Publication 2711R-UM001H-EN-E - April 2021 113

Appendix B Upgrade Firmware

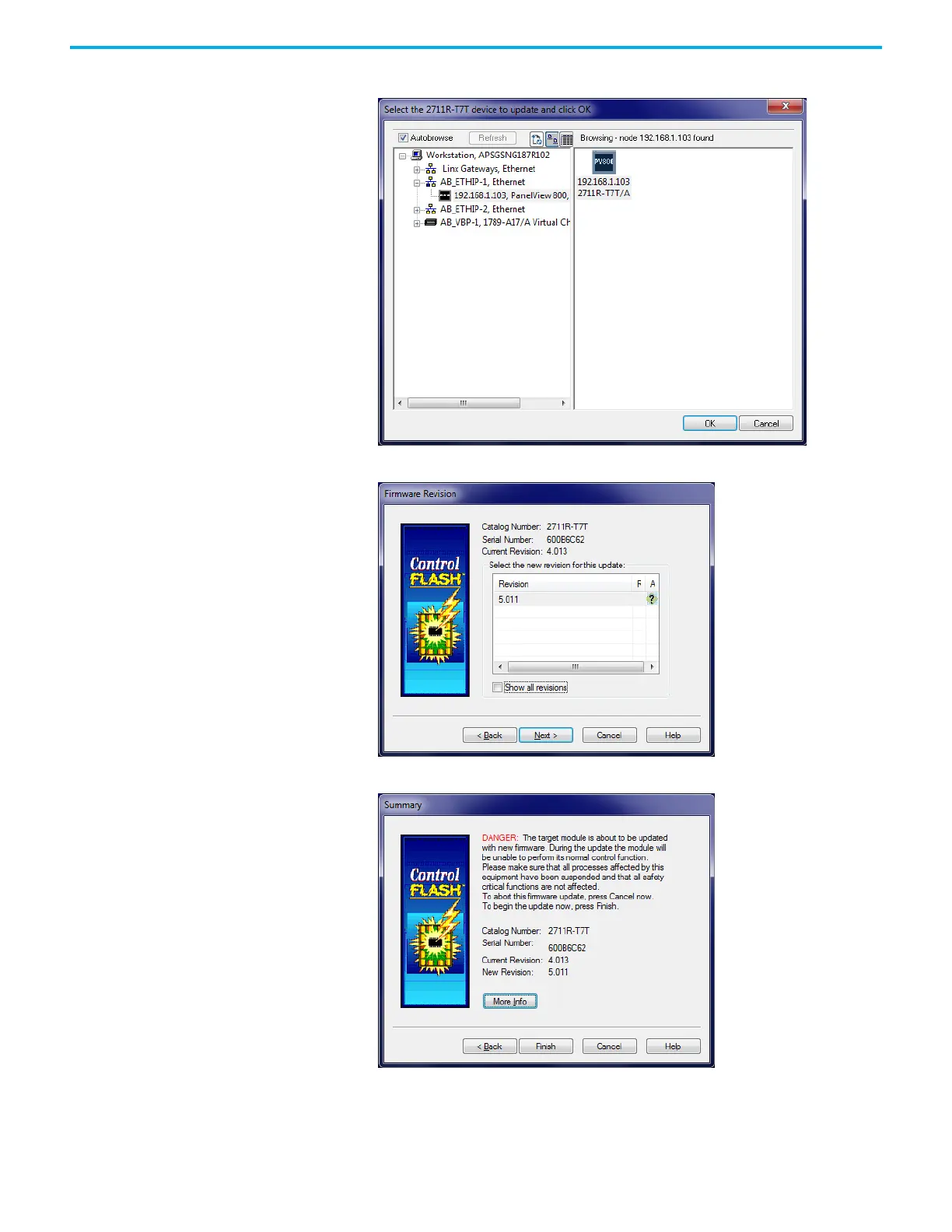

5. Select the terminal in the connection browser window and click OK.

6. Select the firmware revision to flash and click Next.

7. Verify your selections and click Finish.
