Figure 5.10
1
Hex./Torx-flange screw M8x45
2
Sk/Torx-flange screw M6x40

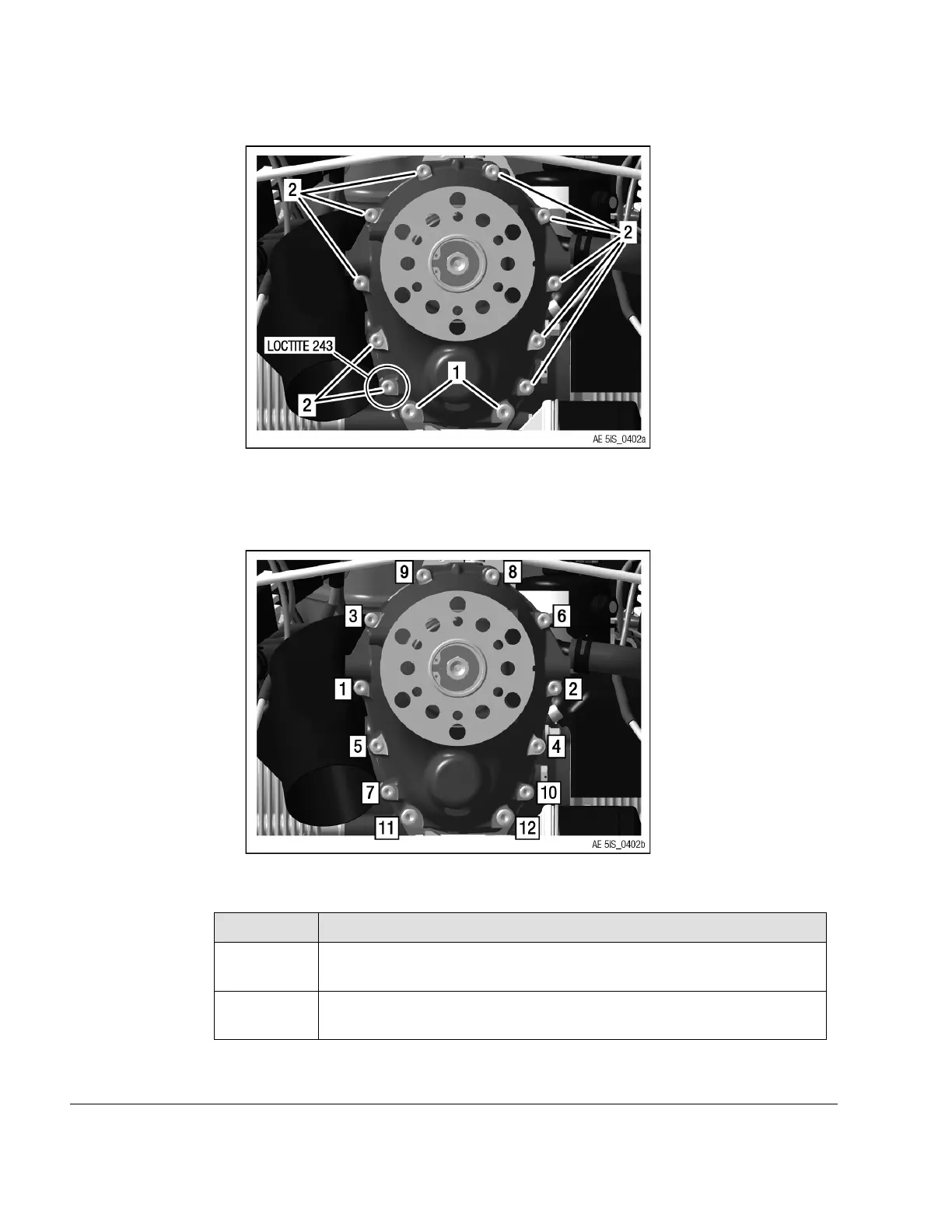

Figure 5.11: Screw diagram
Step
Procedure
11
Inspect the run-out. See also Chapter 72-10-00 section Wear limits.
(GB18)
12
Secure Hex. screw M12 x 20 with LOCTITE 243.
Tightening torque 20 Nm (15 ft. lb.).
