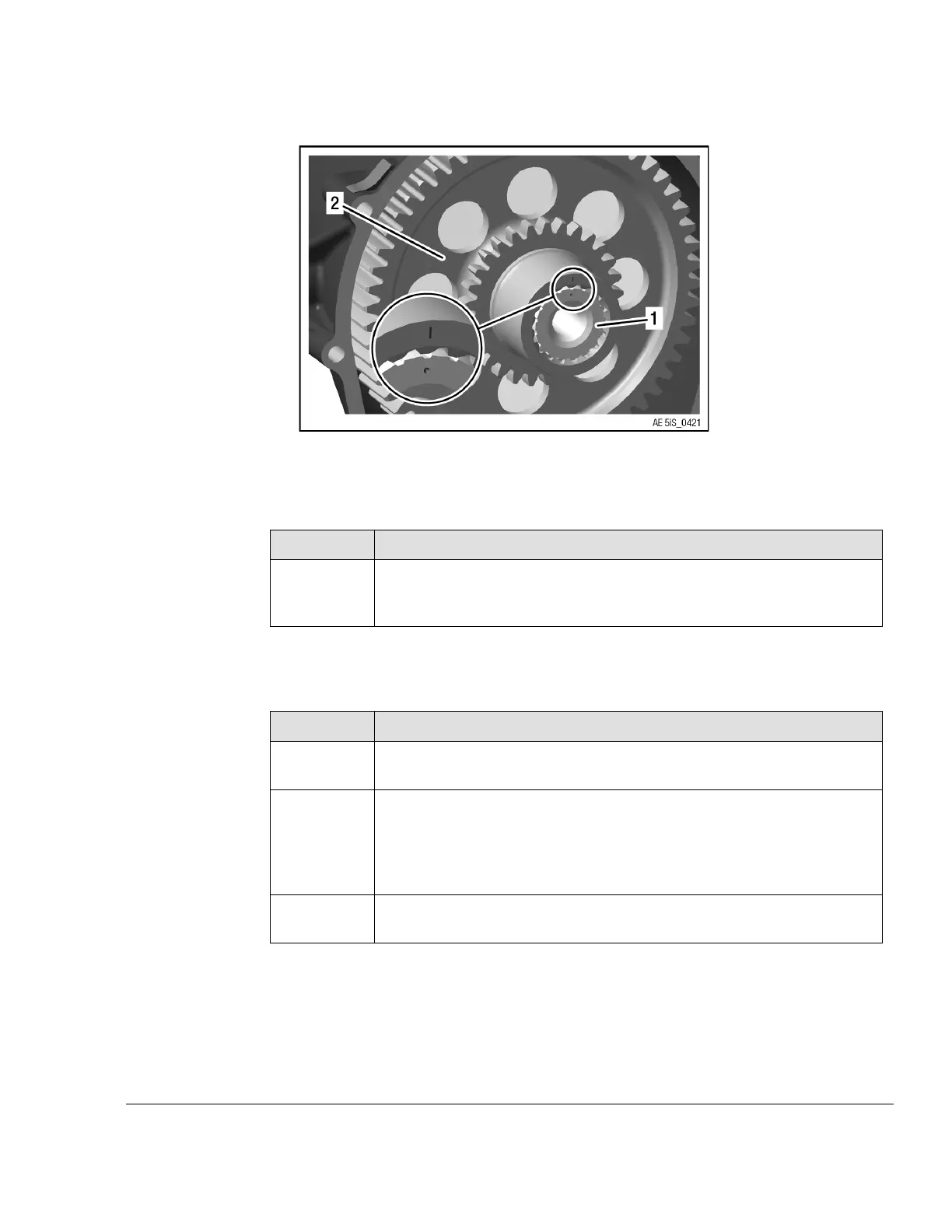

Figure 5.9
1 Torision shaft 2
Overload clutch assy.
Step
Procedure
7
Apply LOCTITE 5910 surface sealing compound to the sealing surface
of the gearbox housing and place on the gear cover assy. with the pre-
assembled gearbox.
NNOOTTEE
Move the propeller shaft a little to allow the dog gear to engage.
Step
Procedure
8
Tap gently on the gearbox housing with a soft-faced hammer to position
the gearbox on the crankcase.
9
Tighten two Hex/Torx-flange screw M8x45 and ten Sk/Torx-flange
screws M6x40 diagonally from each other.
Fasten the screws according to the screw diagram. Tightening torque
M6: 10 Nm (89 in.lb.)
Tightening torque M8: 25 Nm (18 ft.lb.)
10 Observe (Pos 7 Screw diagram): Secure the Sk/Torx-flange screw
M6x40 with LOCTITE 243 . Tightening torque 20 Nm (15 ft.lb).
Effectivity: 915 i A Series
Edition 0/Rev. 0
05–50–00
Page 11
December 01 2017
