TYPICAL APPLICATION EXAMPLES
The application examples given below are for illustration purposes
only.

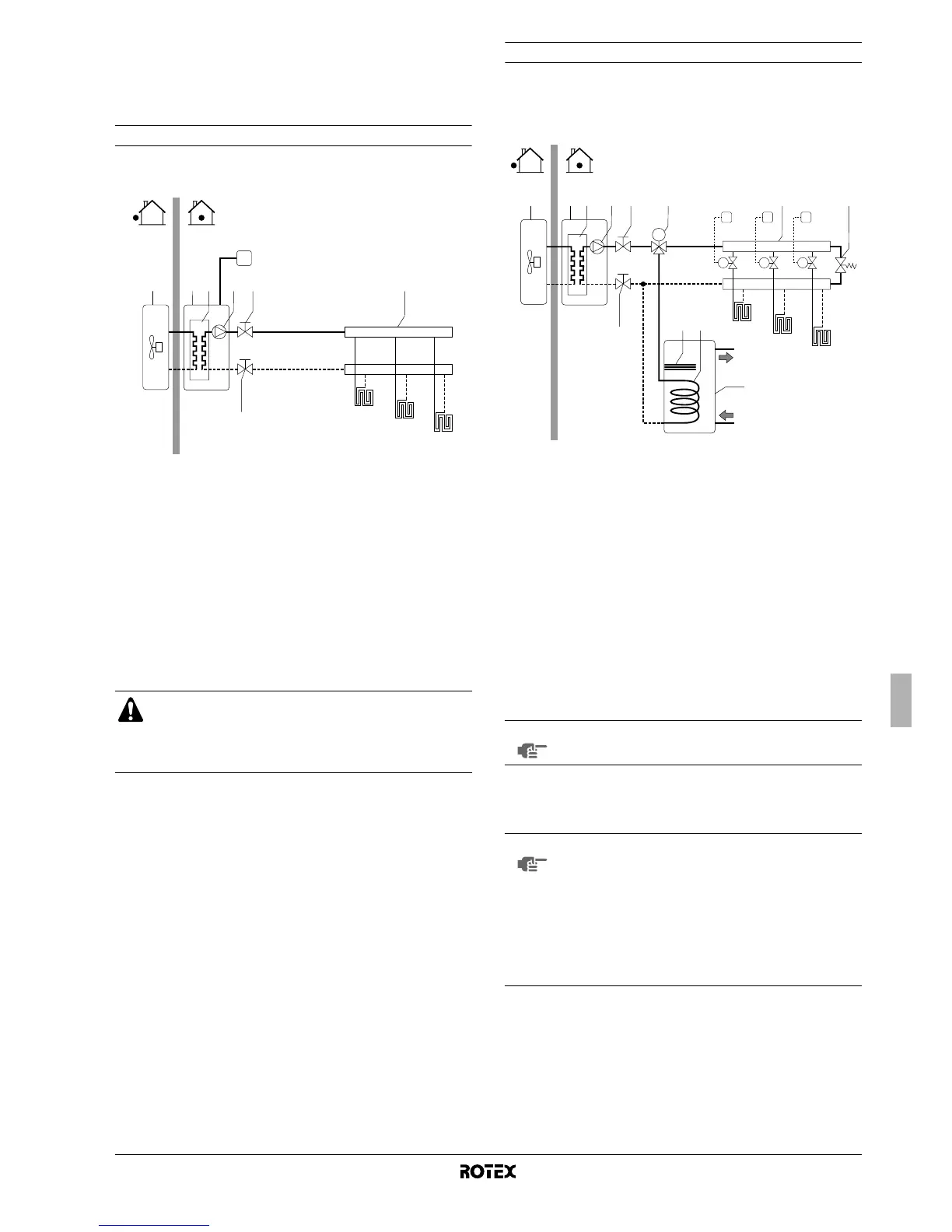

Application 1
Space heating only application with the room thermostat connected
to the indoor unit.
Pump operation and space heating
When the room thermostat (T) is connected to the indoor unit, the
pump (4) will operate when there is a heating request from the room
thermostat, and the outdoor unit will start operating to achieve the
target leaving water temperature as set on the user interface.
When the room temperature is above the thermostat set point, the
outdoor unit and pump will stop operating.
Application 2
Space heating only application without room thermostat connected to
the indoor unit. The temperature in each room is controlled by a valve
on each water circuit. Domestic hot water is provided through the
domestic hot water tank which is connected to the indoor unit.
Pump operation
With no thermostat connected to the indoor unit (2), the pump (4) can
be configured to operate either as long as the indoor unit is on, or
until the required water temperature is reached.
Space heating
The outdoor unit (1) will operate to achieve the target leaving water
temperature as set on the user interface.
1 Outdoor unit 6 Collector (field supply)
2 Indoor unit 7 Shut-off valve
3 Heat exchanger FHL1..3 Floor heating loop
4 Pump T Room thermostat
(optional)
5 Shut-off valve
Make sure to connect the thermostat wires to the correct
terminals (see "Connection of the thermostat cable" on
page 18) and to configure the DIP switch toggle switches
correctly (see "Room thermostat installation configuration"
on page 21).
FHL1
FHL2
FHL3
T
5 64321
7
1 Outdoor unit 10 Domestic hot water tank
(optional)
2 Indoor unit
3 Heat exchanger 11 Booster heater
4 Pump 12 Heat exchanger coil
5 Shut-off valve FHL1..3 Floor heating loop
6 Collector (field supply) T1..3 Individual room
thermostat (optional)
7 Shut-off valve
8 Motorised 3-way valve
(field supply)
M1..3 Individual motorised
valve to control loop
FHL1 (field supply)
9 By-pass valve
(field supply)
NOTE
Details on pump configuration can be found under
"Pump operation configuration" on page 22.
NOTE
When circulation in each space heating loop (FHL1..3)
is controlled by remotely controlled valves (M1..3), it is
important to provide a by-pass valve (9) to avoid the
flow switch safety device from being activated.
The by-pass valve should be selected as such that at
all time the minimum water flow as mentioned under
"Water pipework" on page 14 is guaranteed.
It is recommended to select a pressure difference
controlled by-pass valve.
M
FHL1
FHL2
FHL3
M1
T1
M2
T2
M3
T3
54321
12
10
11
7
8 6
9
