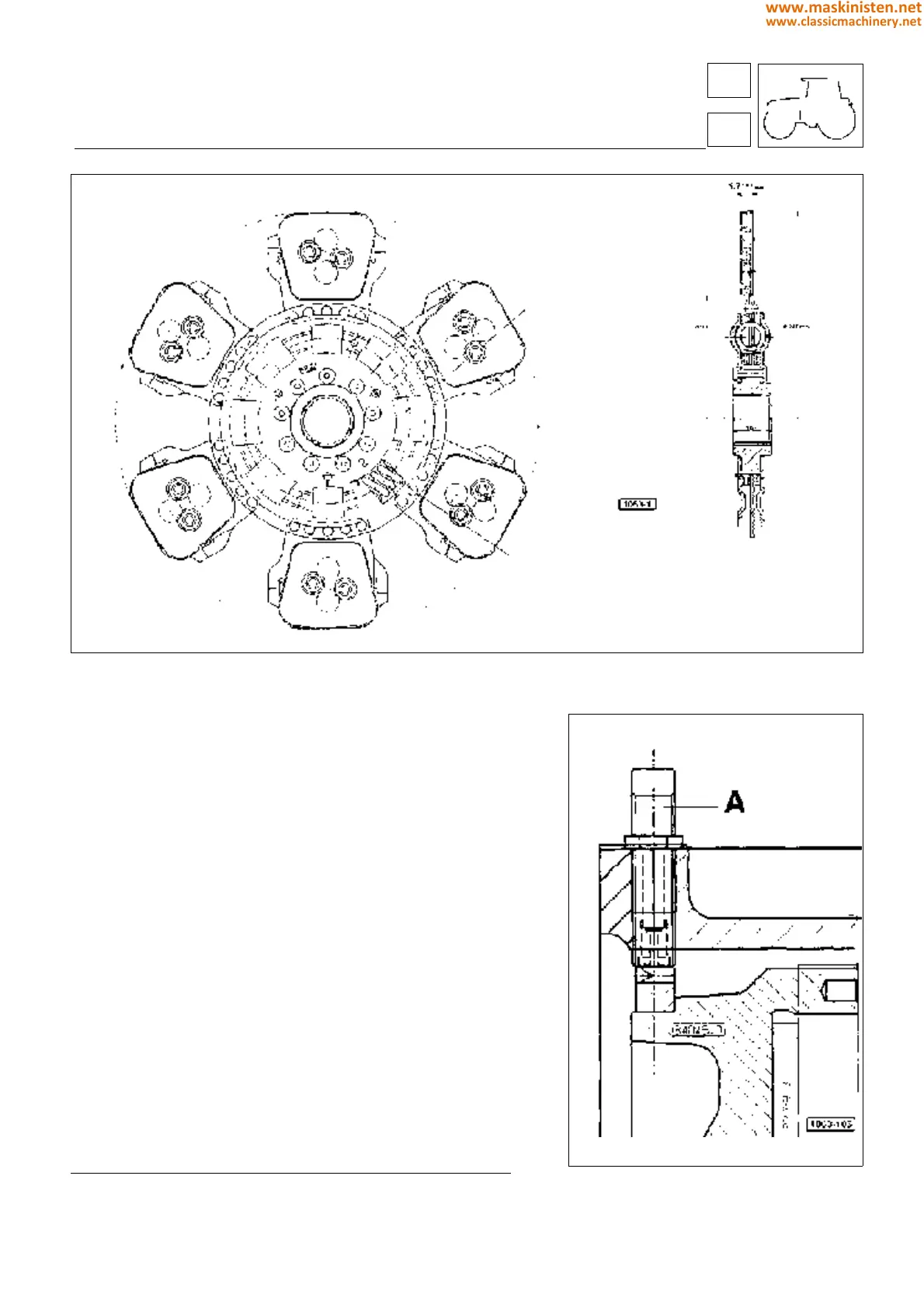

Fig. 2 - Friction disc for
SILVER 100.6
.
CAUTION:
In the event the transmission being split to gain access
to the clutch assembly, the pickup (A, fig 3) must be removed to
avoid its being damaged by the teeth of the engine flywheel.
IMPORTANT: If there are signs of scoring on the surface of the
flywheel, the surface must be machined smooth following the
directions of page 37.
Fig. 3 - Engine rpm pickup.
clutch and transmission
clutch
Spring specifications to Belleville washer for the
clutch engagement
Load on the pressure plate Nm 11000
23
2
111
