ADJUSTING BELT TENSION

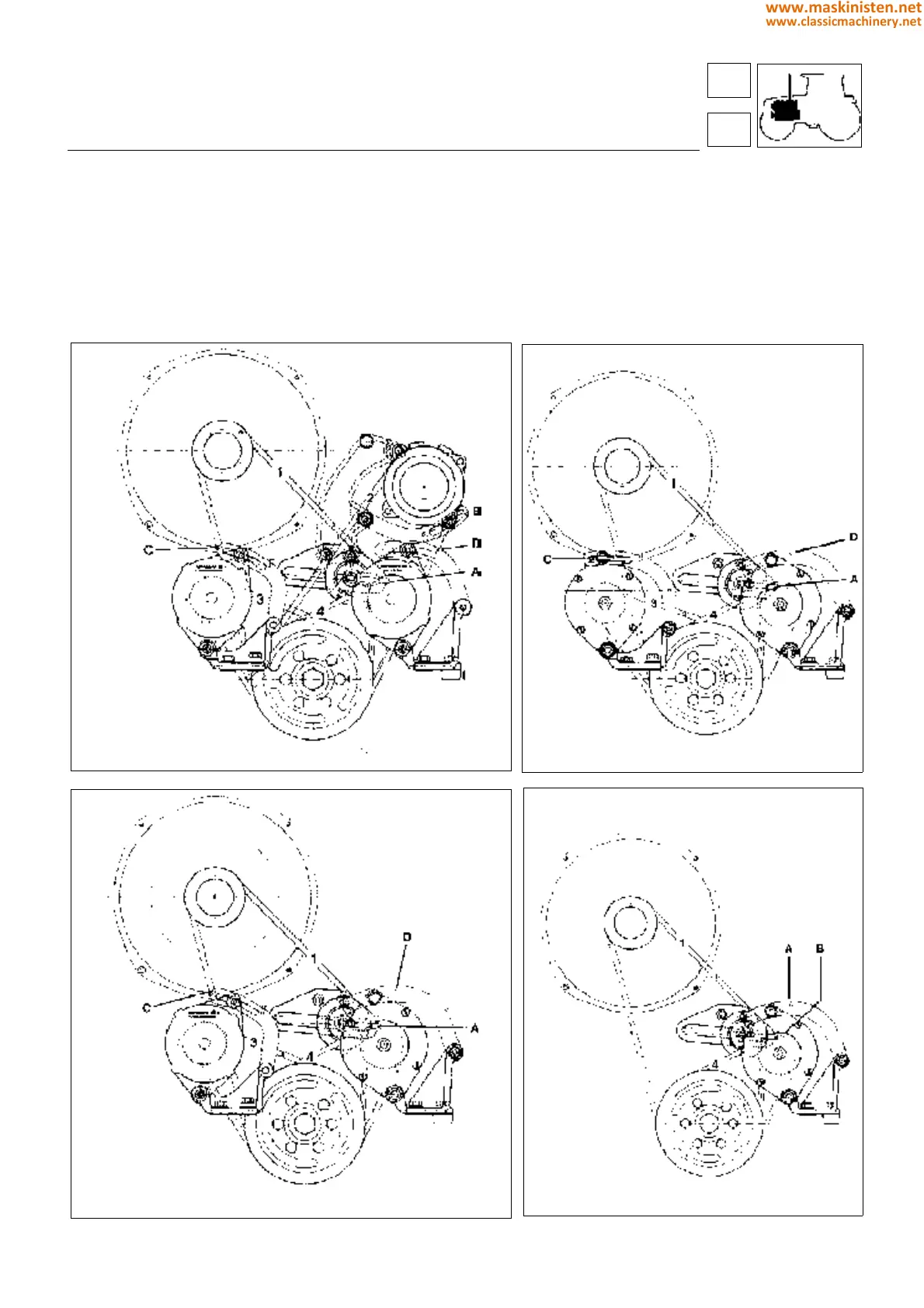

Adjusting the belt tension turning screws A-B-C-D, see figure undersigned; operate as follows:
turn the adjusting screws until to obtain the belt settling, exerting finger pressure to the middle of the longest section;
the belt should deflect approximately 20 mm (for belts with reference 1-2) and 15 mm (for belts with reference 3-4).
NOTE - check with the hand on the middling point of the length tug of the belt.
engine
cooling system
- with heating and air-conditioning system
- with enhanced heating system and without air-conditioning system
- with heating system and without air-conditioning system
- without heating and air-conditioning system
17
1
85
