SAME SILVER 100.4 - Operating Diagram for Separate Brakes Valve

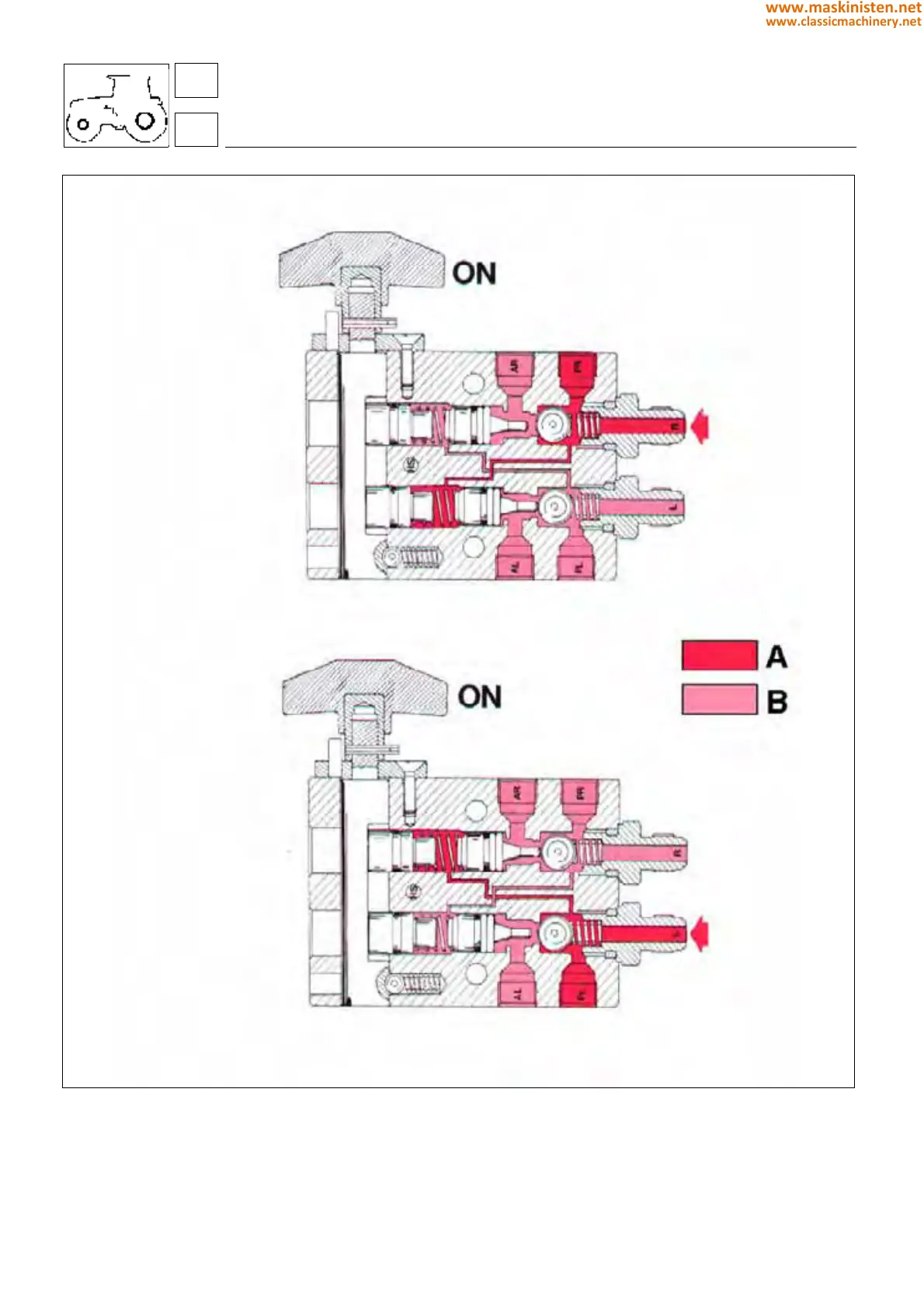

Fig. 24 - Brake hydraulic system schematic diagram with tap in position "ON".
A - oil pressure
B - discharge oil
vehicle
brakes
Hydraulic connections
PR- Rear RH brake
L - LH brake pedal pump
AL- Front LH brake
R - RH brake pedal pump
AR- RH front brake
PL - Rear LH brake
H - STOP pressure switch
