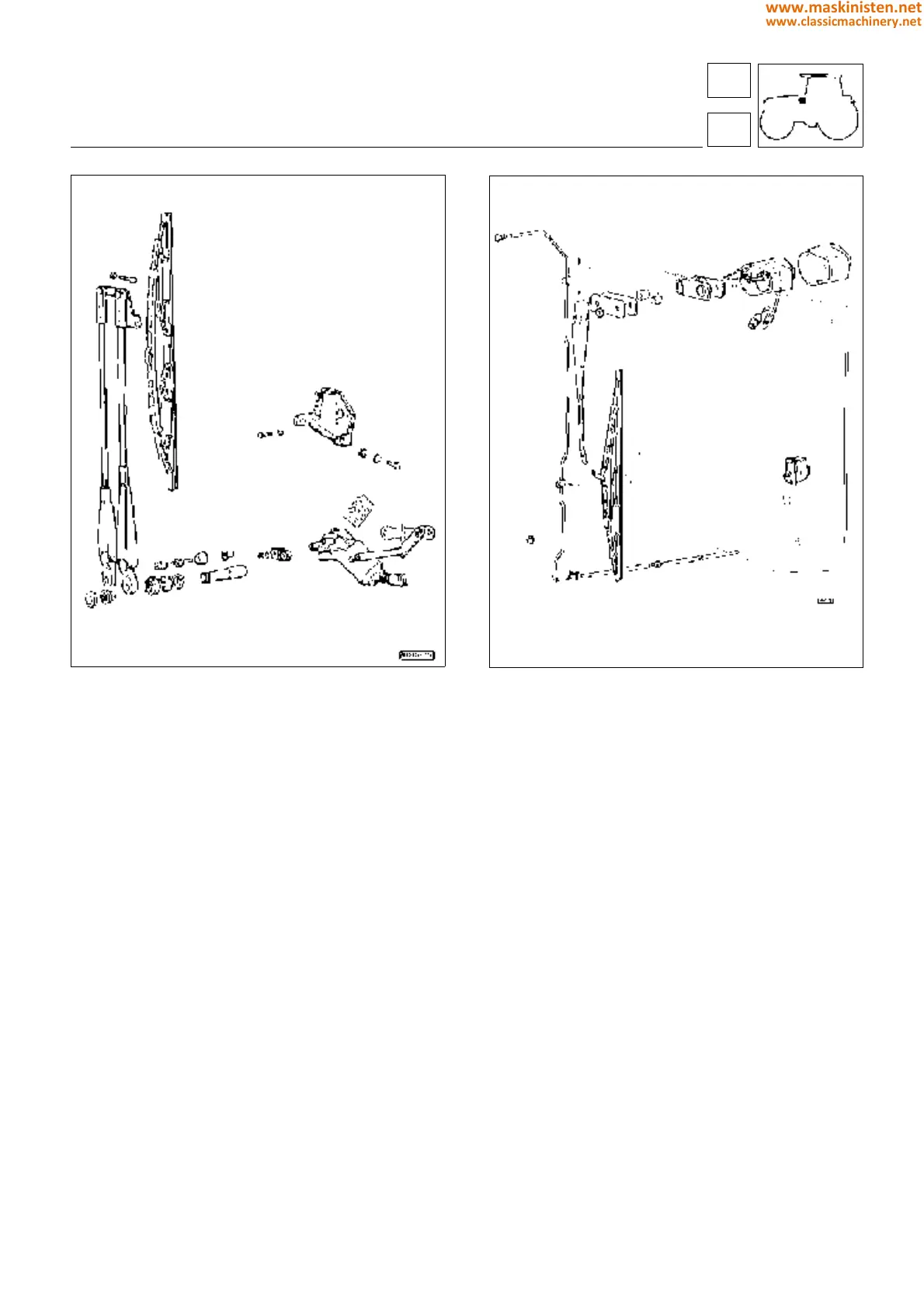

Fig. 14 - Front screen wiper.
Removal of the cab and platform
The machines of this family can be equipped with cab, or with platform only. Directions are given here for the removal
of the cab and platform, as this represents the complete sequence of operations; ignoring the part relating specifically
to the cab, the same directions remain good for a machine with platform only.
PROCEED AS FOLLOWS:
Remove the engine hood and the exhaust silencer
—unscrew the eight bolts by which the hood is secured at front and rear to the end brackets and intermediately to
the air intake duct.
Disconnect the following from the heater unit
—fan unit heater leads.
—fan unit motor leads.
Disconnect the following control linkages:
—throttle (machines with mechanical throttle linkage only).
—fuel cutoff (machines with mechanical throttle linkage only).
Located on the left hand side of the transmission housing and under the cab or platform:
—differential lock pedal (machines without electrohydraulic controls).
—hydraulic lift (machines with mechanically operated lift only).
—P.T.O. clutch (machines without electrohydraulic controls).
—four wheel drive coupler (machines without electrohydraulic controls).
Fig. 15 - Rear screen wiper.
body
driving position
71
7
347
