Fuel prefilter
Strip the fuel prefilter by releasing holding spring A.
Clean cup B and cartridge C with a compressed air jet and ensure
each single component is fully sound, if not replace.
Should any water be found in the glass cup bottom, loosen
securing dowel D and wait until fuel comes out without air bubbles.
Fuel filter
To replace the filter cartridge, remove the cartridge retaining screw
in the upper body, remove the old cartridge and replace with a new
cartridge of the original type.
Check the seal between the new cartridge and the cover. Position
the cartridge and replace the retaining screw.
Draining water from fuel filter
To drain off any water from the filter, loosen the screw in the bottom
of the filter housing and drain off all fuel mixed with water. When
clean fuel appears, re-tighten the screw.

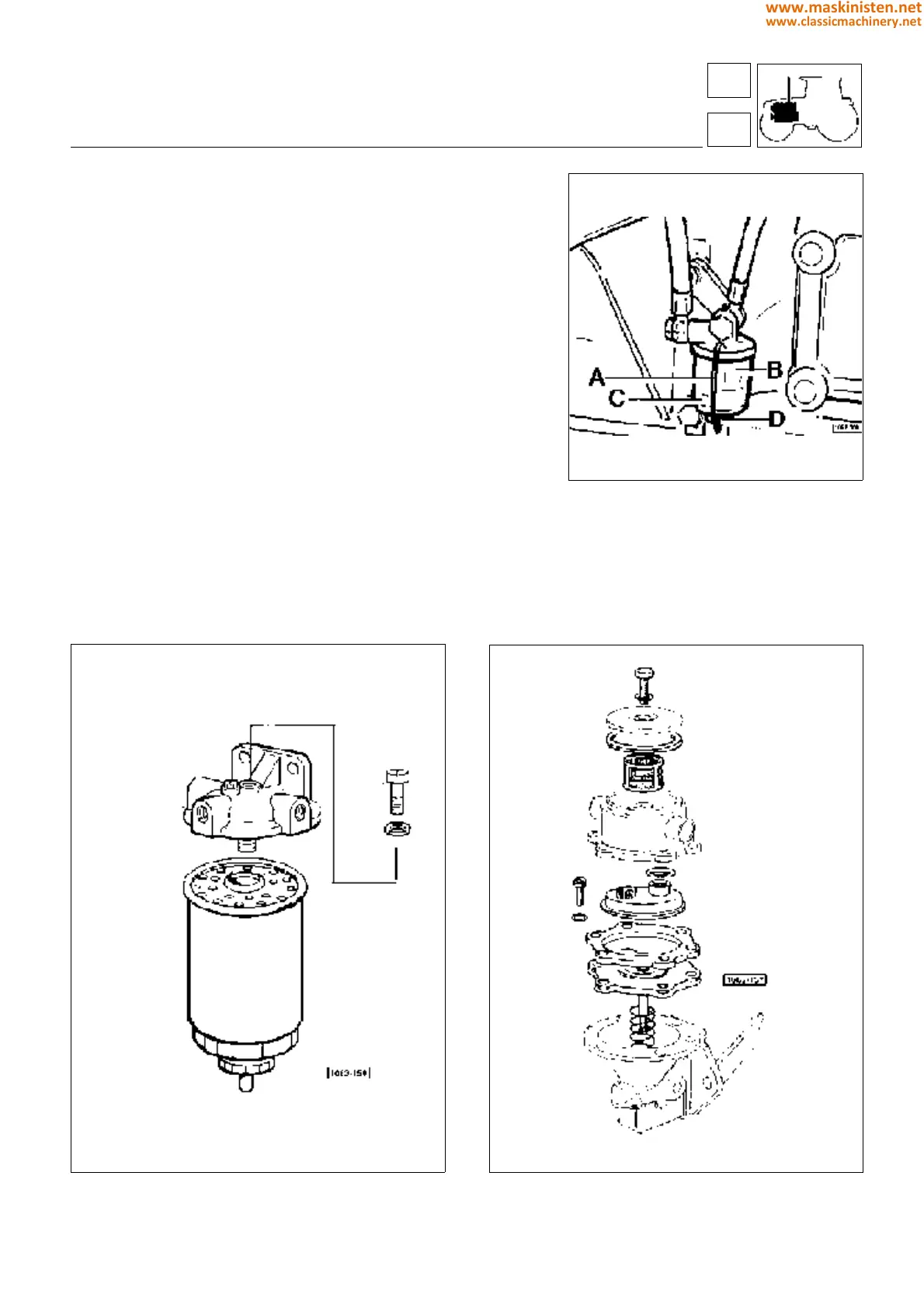

Fig. 18 - Fuel prefilters.
Fig. 19 -Fuel filters (the Silver 100.6 is equipped with 2 filter
cartridges)
Fig. 20 - Fuel supply pump.
engine
fuel system
16
1
81
