clutch transmission
agroshift

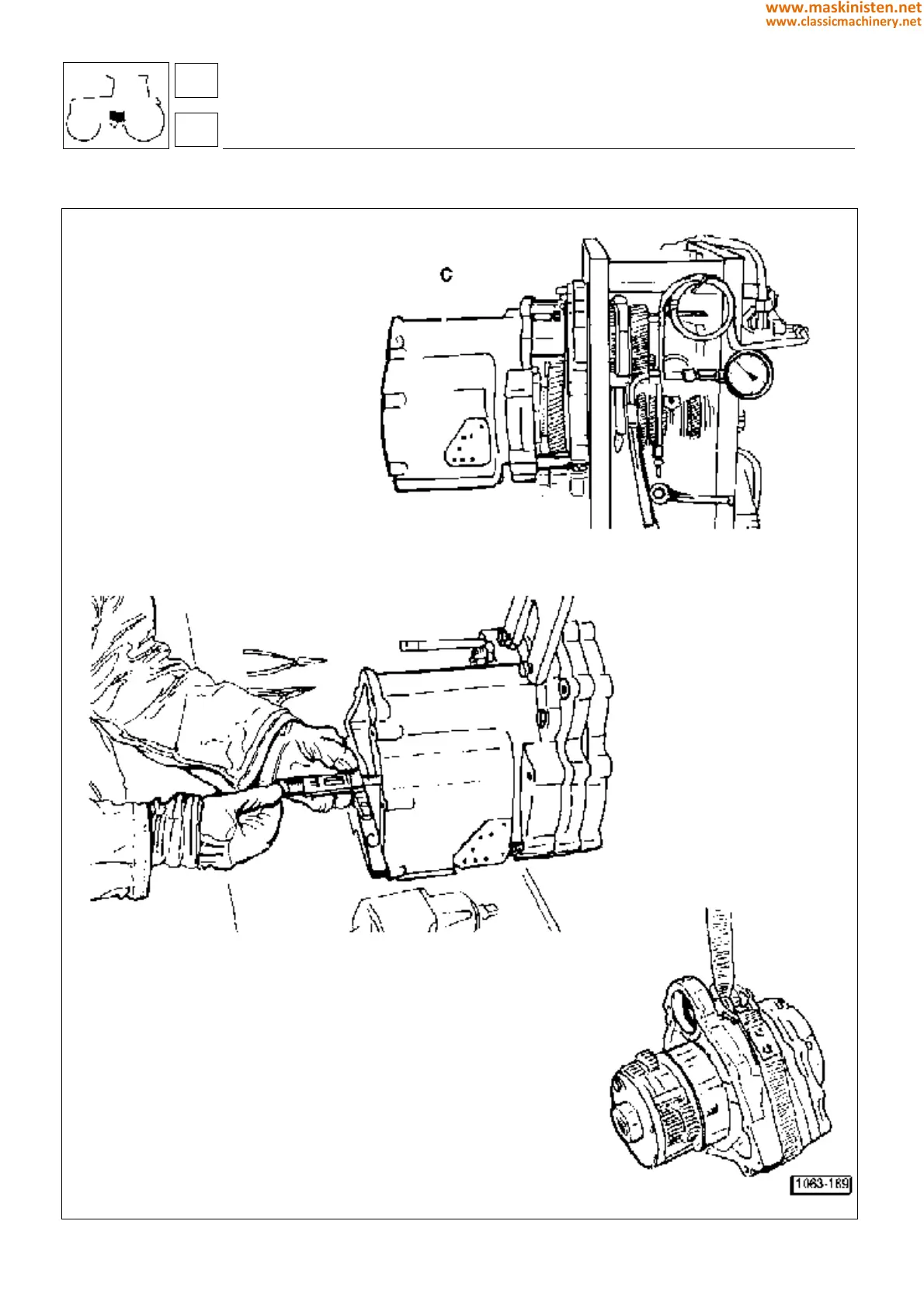

MAIN OPERAZIONS INVOLVED IN ASSEMBLY OF AGROSHIFT UNIT
2 - Measure dimension X (see
fig 11) for adjustment of end float
in the Agroshift unit.
3 - Sling the clutches and speed redu-
cer assembly to a hoist so as to facili-
tate assembly operations inside the
housing C.
1 - Offer the housing C to the gears of
the transmission and secure in place.
27
2
126
