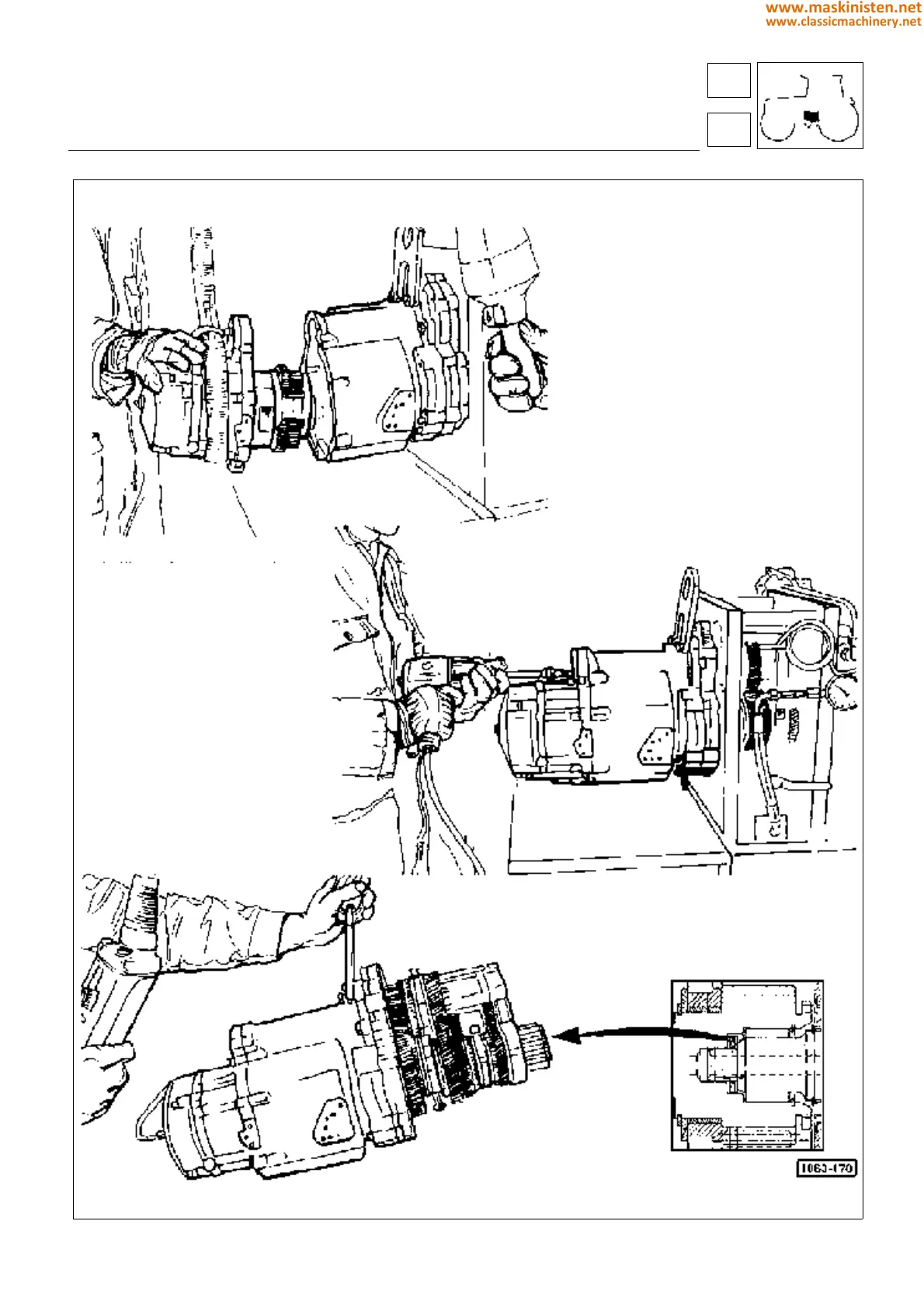

5 - Tighten the securing bolts of
the clutches and speed reducer
unit to the mounting flange.
6 - Sling the Agroshift unit to a
hoist, together with the gearshift as-
sembly, and locate in the rear tran-
smission housing.
Caution: Position the thrust bearing
in the range input shaft seating as
illustrated below.
4 - Locate the speed reducer unit com-
plete with clutches in the mounting flan-
ge.
clutch transmission
agroshift
27
2
127
