SAME SILVER 100.4 - Page 155

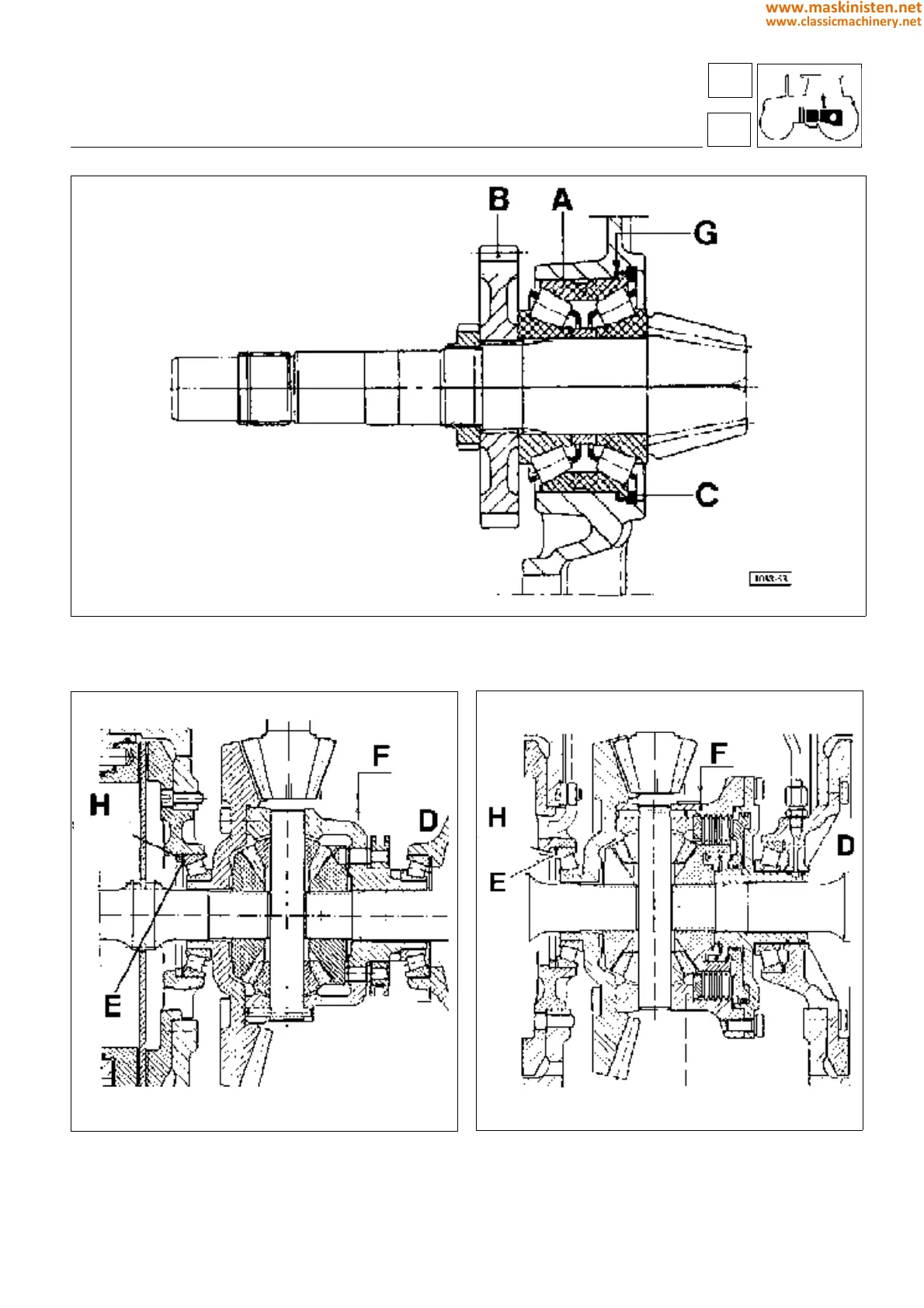

Fig. 40 - Installing bevel pinion shims.
Fig. 41 - Installing bevel drive shims (the two figures show the differential units on the Silver 100.6.
The differential units for Silver 80 - 90 - 100.4 are of the same shape but different dimensions; in addition they are fitted without
the spacer H).
- with mechanical diffferential lock
- with electrohydraulic controlled differential lock
transmission
differential gear
3
35
only for
100.6
only for
100.6
155
