SAME SILVER 100.4 - Page 187

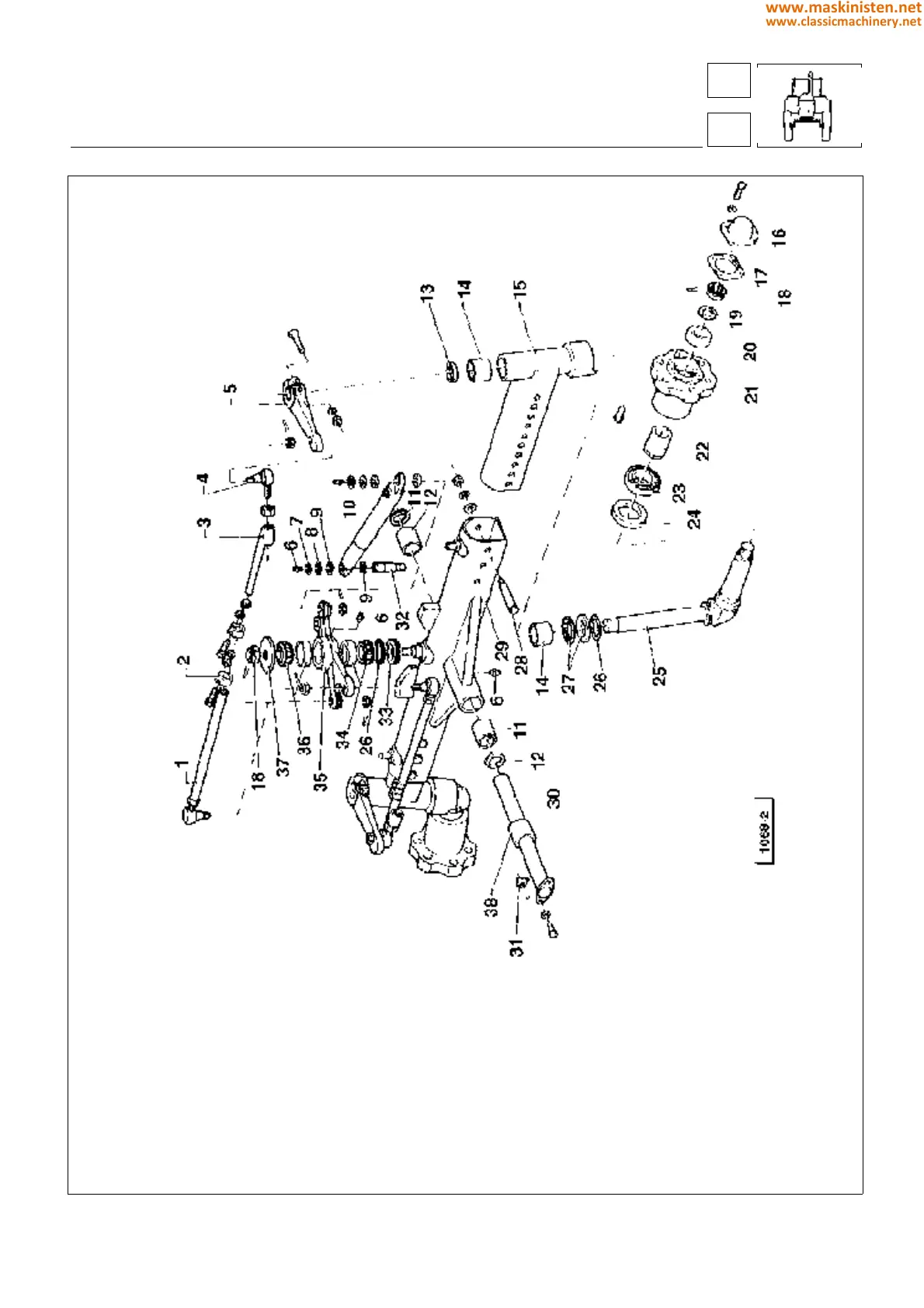

Fig. 2 - Front axle assembly parts.
drive axles - axles
2-W.D. extendible axle
1 steering track rod 2 clamp 3 sleeve 4 ball-and-socket joint 5 external steering lever 6 lubricating nipple 7 snap ring 8 thrust ring 9 seal ring 10 power steering cylinder 11 shoulder ring 12 bushing 13 seal ring 14 bushing 15 side LH axle 16 cover 17 seal ring 18 castellated nut 19 shoulder ring 20 external bearing 21 wheel hub 22 spacer ring 23 internal bearing 24 retaining ring 25 wheel shaft 26 O-ring 27 axial bearing 28 pin 29 centre axle 30 axle securing pin 31 shims 32 pin 33 disk 34 lower taper roller bearing 35 centre steering lever 36 upper taper roller bearing 37 cover 38 spacer ring
