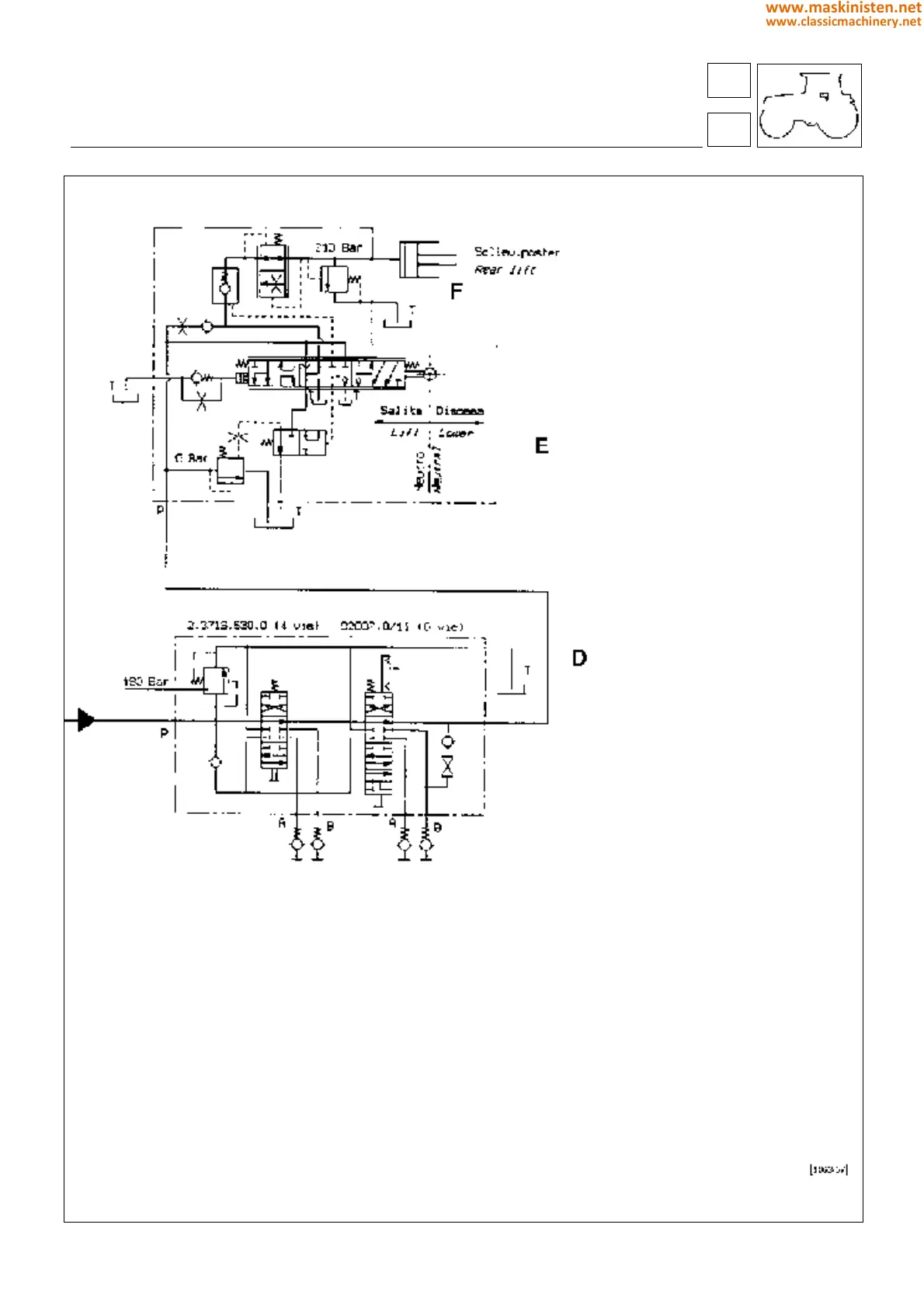

controls
electro-hydraulic controls
A - oil filters
B - oil pump
C - oil filter
D - auxiliary spool valve
E - hydraulic circuit for mechanical type lift system
F - lift cylinders
G - hydraulic pump
H - power steering directional control valve
I - resonators
L - pressure control valves assembly
M - valve mounting
N - rear P.T.O. clutch
O - rear P.T.O. clutch directional control valve
P - steering cylinders
Q - heat exchanger
R - transmission lubrication
