driving position

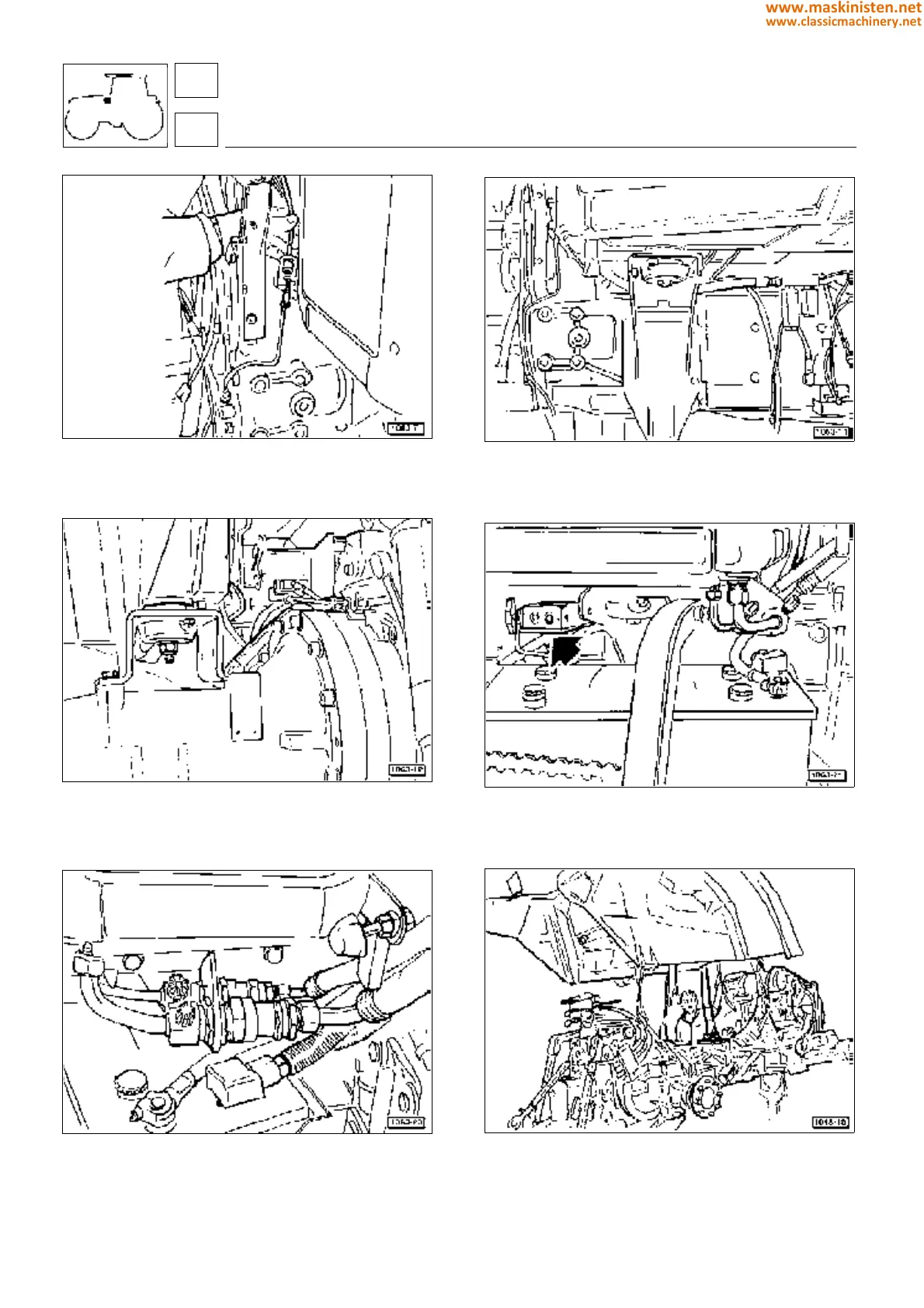

Fig 28 - Disconnect the oil line of the gearshift clutch circuit.
Fig. 30 - Remove the bolts anchoring the cab to the rear
silent-blocks (left and right hand side).
Fig. 32 - Disconnect the refrigerant lines of the air conditioning
system at the front right of the cab (machines with air condi-
tioning only).
Remove the battery.
Fig 29 - Remove the bolts anchoring the cab to the front
silent-blocks (left and right hand side).
Fig. 31 - Disconnect the front and rear brake oil lines from the
Separate Brakes valve, located beneath the cab on the right
hand side.
Fig. 33 - Sling the cab to a hoist, proceeding as follows:
remove the four 12 mm diameter roof bolts and replace with
4 eye bolts.
Using a suitable equalizing beam, lift the cab gradually, by
small degrees, and disconnect the blocks of the electrical
system located beneath the cab platform.
