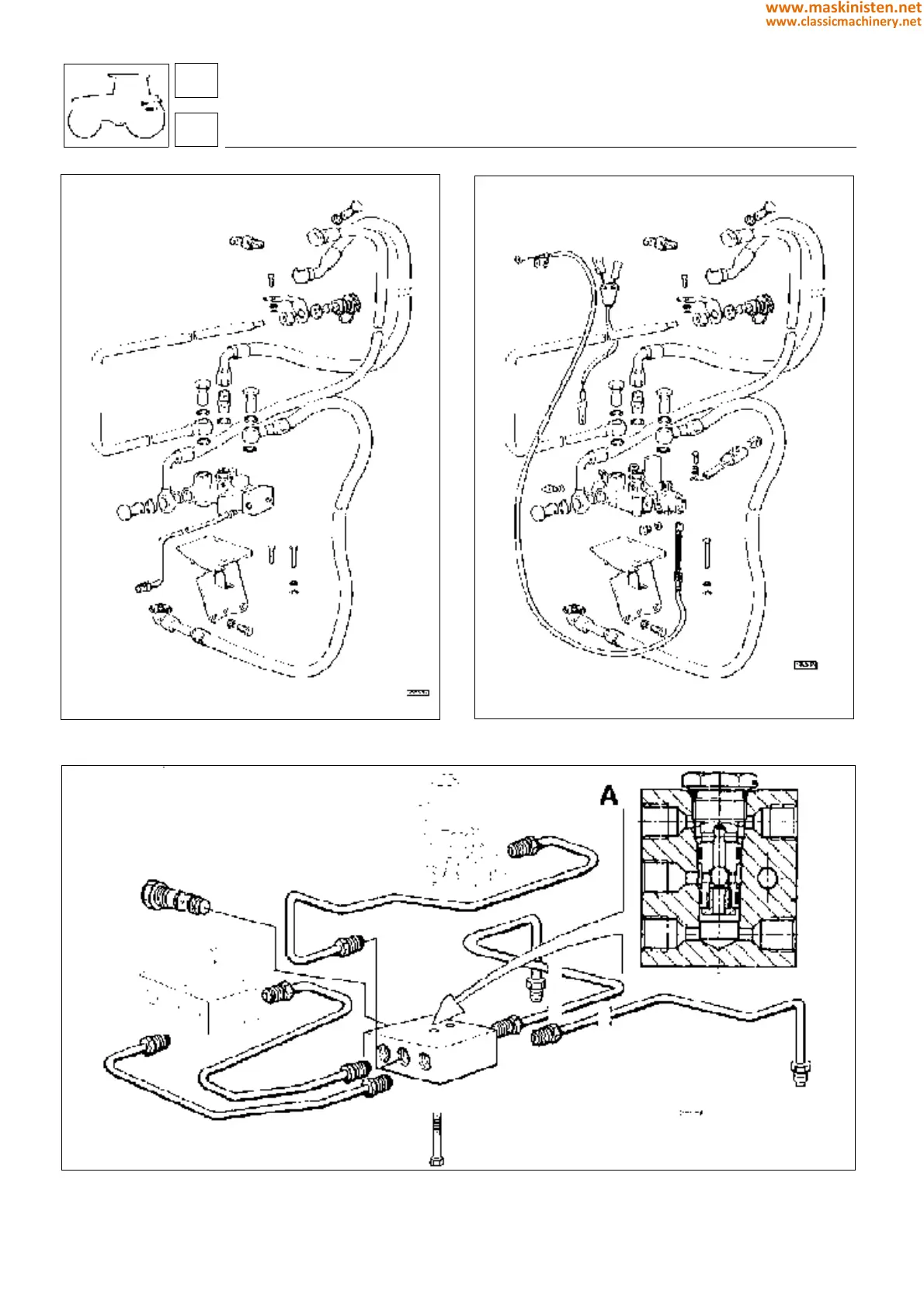

Fig. 3 - Fig 3 - Oil lines connected to directional control valve of hydraulic trailer braking system. A - bistable valve (fitted only in
conjunction with ITALY version of the control valve) allows trailer brake to be applied even when tractor brakes are operated
independently.
Fig. 1 - Component parts of trailer braking system (FRANCE
version).
Fig. 2 - Component parts of braking system for trailer equipped
with safety brake (ITALY version).
89
8
systems
trailer braking system
