SILVER 100.6
Fitting shims between engine oil pan and front
support
Between engine oil pan C and front support A it is required that
shims be fitted so that a
±
0.1 mm alignment with the engine block
plane may be obtained.
Mount the oil pan onto engine block paying particular attention the
rear planes are thoroughly aligned (engine flywheel side).
With no. 5.9030.272.0 centesimal gauge and no. 5.9030.433.0
gauge base measure the difference in dimension between oil pan
C front plane and engine block plane B. This difference in reading
should be 0.35 to 0.95 mm (make sure the oil pan plane always
recesses from engine block plane).
Install the front support placing a number of shims which permits
both planes to be aligned within a
±
0.1 mm allowance.
WARNING: Reading and shimming should be performed both on
the front right-hand and the front left-hand side of the oil pan as
shown in figure.

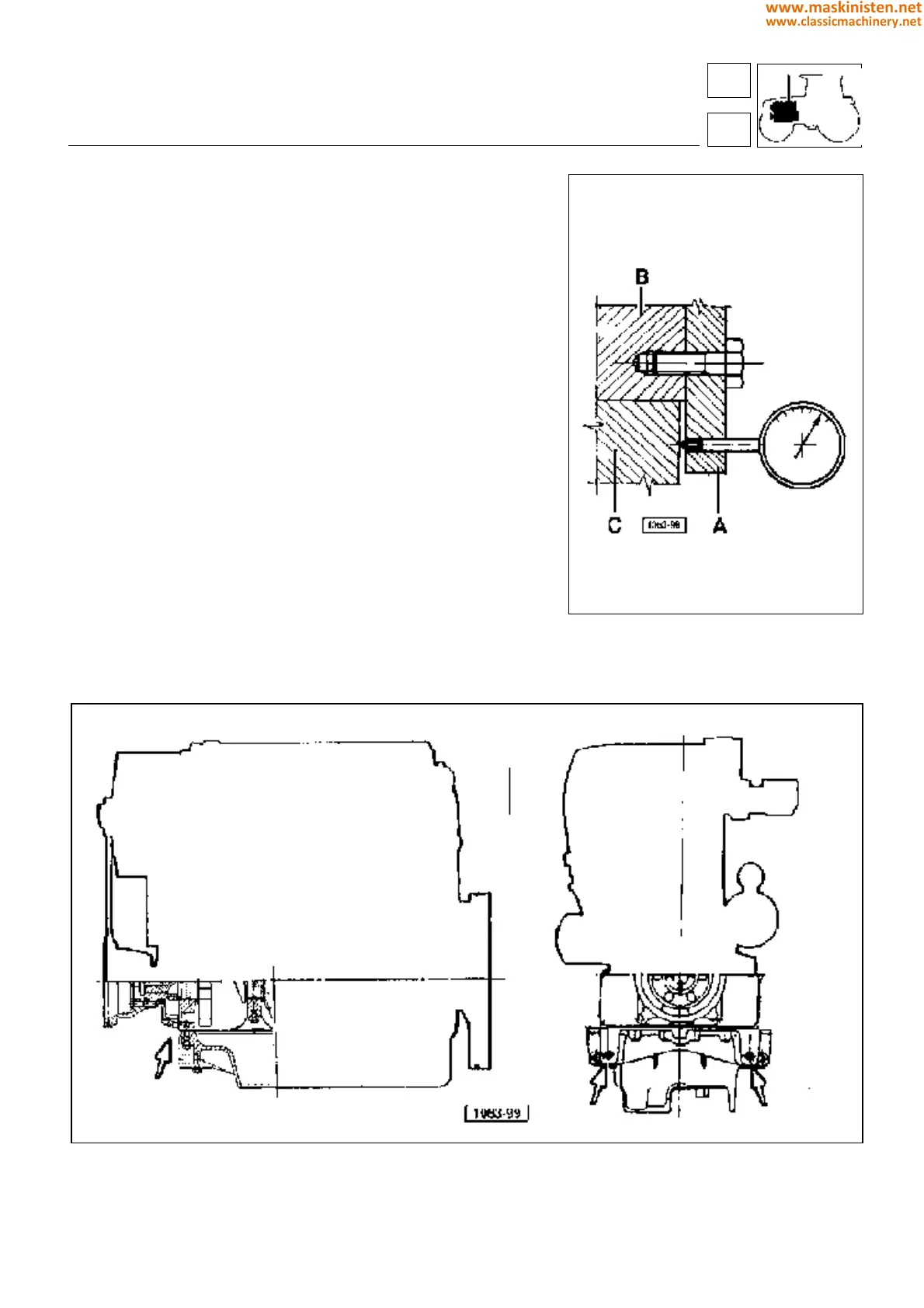

Fig. 4 - Measuring the difference in dimension
between oil pan and engine block planes.
engine
lubrication system
Fig. 5 - Positions for reading dimension difference between front oil pan and engine block planes.
15
1
51
