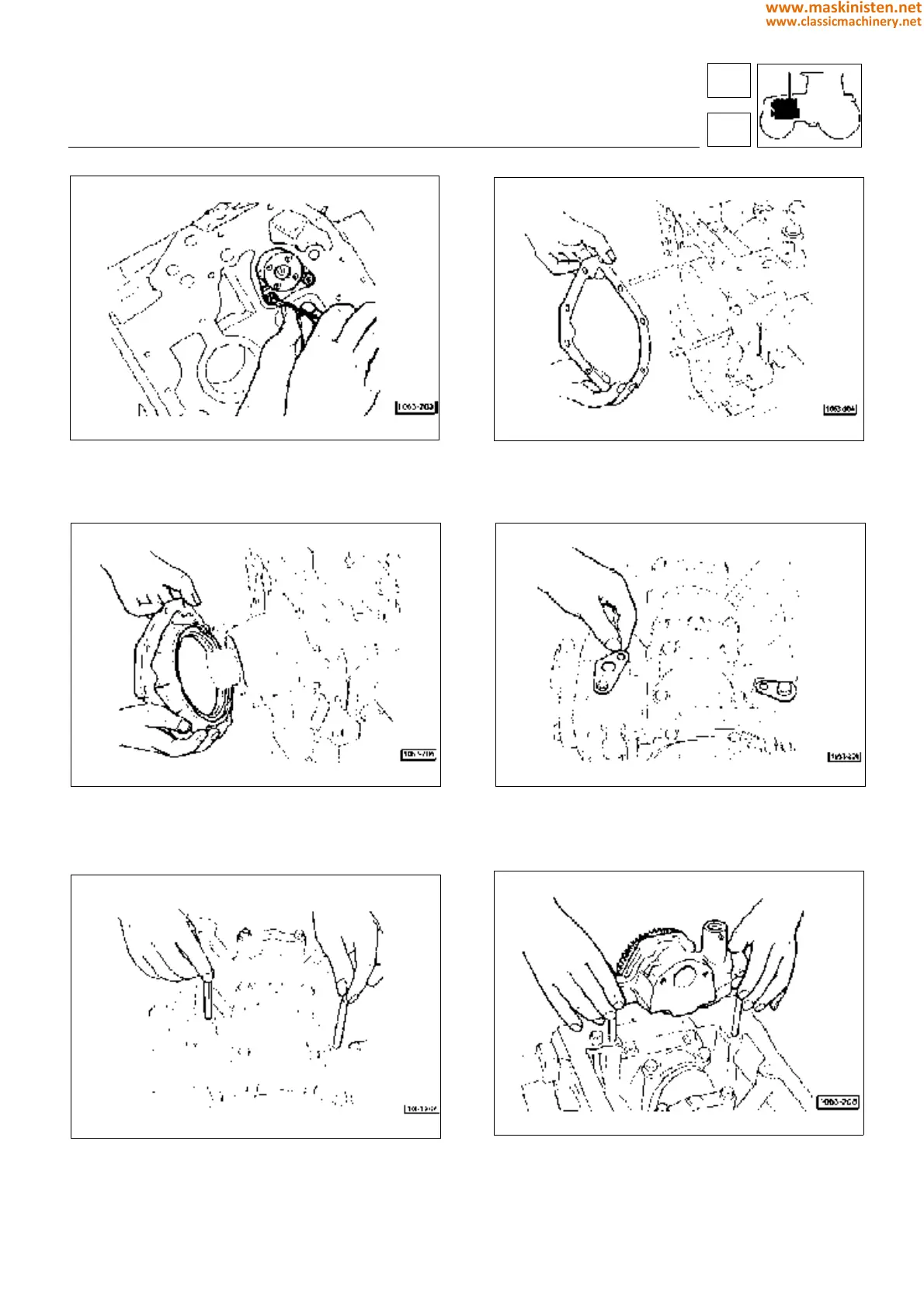

Fig. 29 - Install the camshaft in crankcase. Mount the forked

flange permitting the camshaft to be positioned. Make sure

the camshaft is free to rotate with a slight amount of end float.

Warning - If the timing gear has been removed or replaced

a new valve timing should be performed;

Fig. 31 - Using a guard ring install the flange. Warning - The

ring inserted into flange should never be greased. Cover the

securing screws with a sealing compound. Interpose the

copper washers and tighten to the specified torque as indica-

ted on page 90;

Fig. 33 -

SILVER 100.6

ONLY - To assemble the oil pump

correctly place two guide pins (or two screws) as shown in

figure;

Fig. 30 - Fit the crankshaft rear flange gasket;

Fig. 32 -

SILVER 100.6

ONLY - Fit two packs of shims

between oil pump and engine block. (Shim packs should be

so that a gear backlash as indicated on page 50 may be

established);

Fig. 34 -

SILVER 100.6

ONLY - Install the whole engine oil

pump assembly;

engine

assembly
