3.3 FIXING OF THE ELEMENTS
3.3.1 UDAT / UDAT Power+

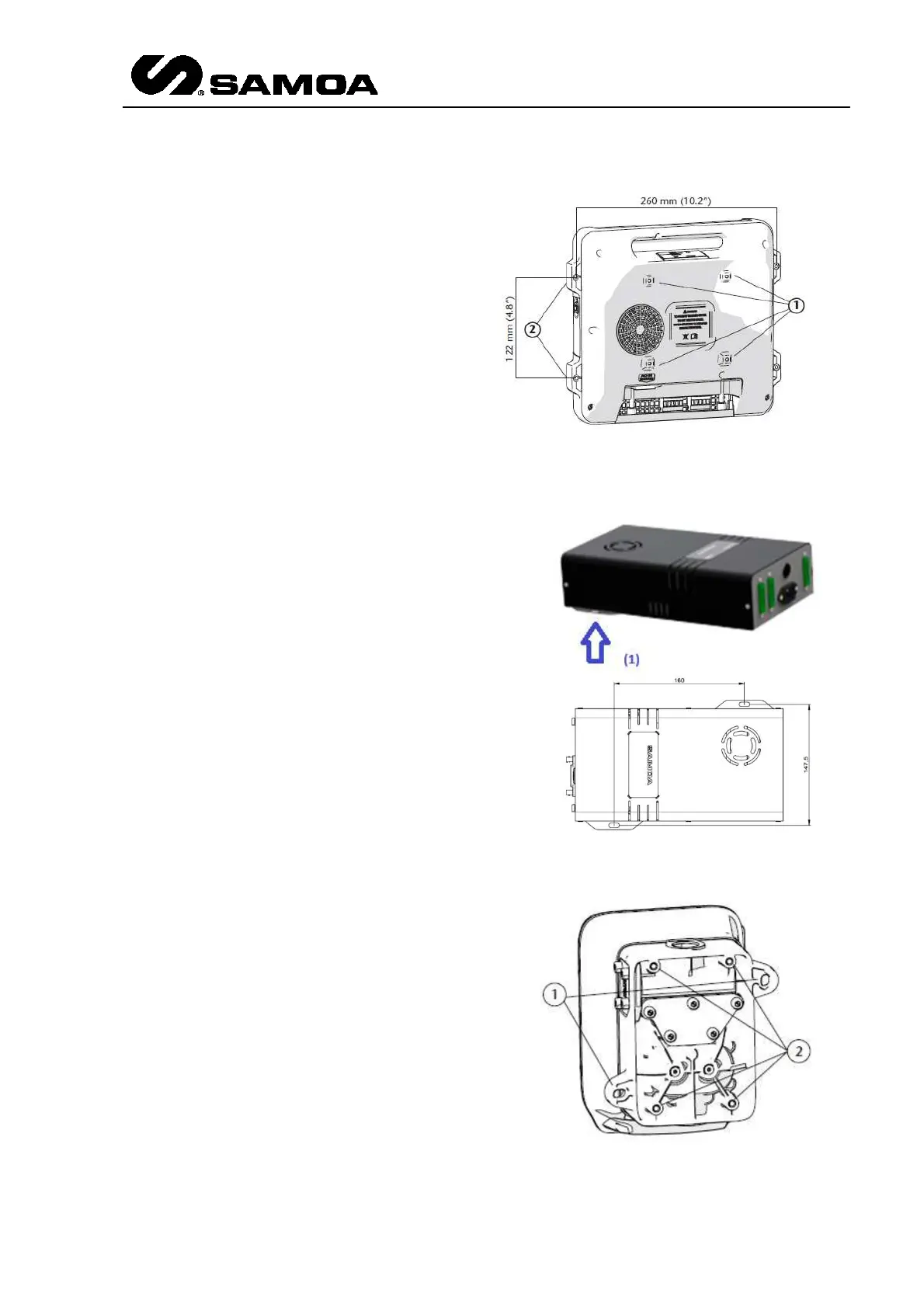

The UDat fixation to the elements of the
installation can be done through the 4
VESA 100 holes placed in the back of the
case (1).
The attachment holes (2) are used in
case of equipment flush installation.
3.3.2 UPOWER / UPOWER+
The unit can be fixed to the wall or others
fixtures of the installation by means of
the front fixations (1).
3.3.3 UVALVE / UPULSER / UPULSER+
As you want, the unit can be fixed to the
wall or others fixtures of the installation
by means of the front fixations (1) or the
four threaded holes (2) placed on the
back of the unit.
This equipment is intended to be installed
directly in the distribution pipeline. The
unit has a 1/2” BSP connection at both
inlet and outlet. Prior to installing the
equipment, notice the location of the inlet
fluid connection indicated as “IN” (3). It is
mandatory to respect the flow direction
for proper operation.
