Rev 3 (XXXX 2019)
NexU INSTALLATION MANUAL
37
3.3.11 CABLING FROM UDAT / UDAT POWER+ TO UDAT / UDAT POWER+

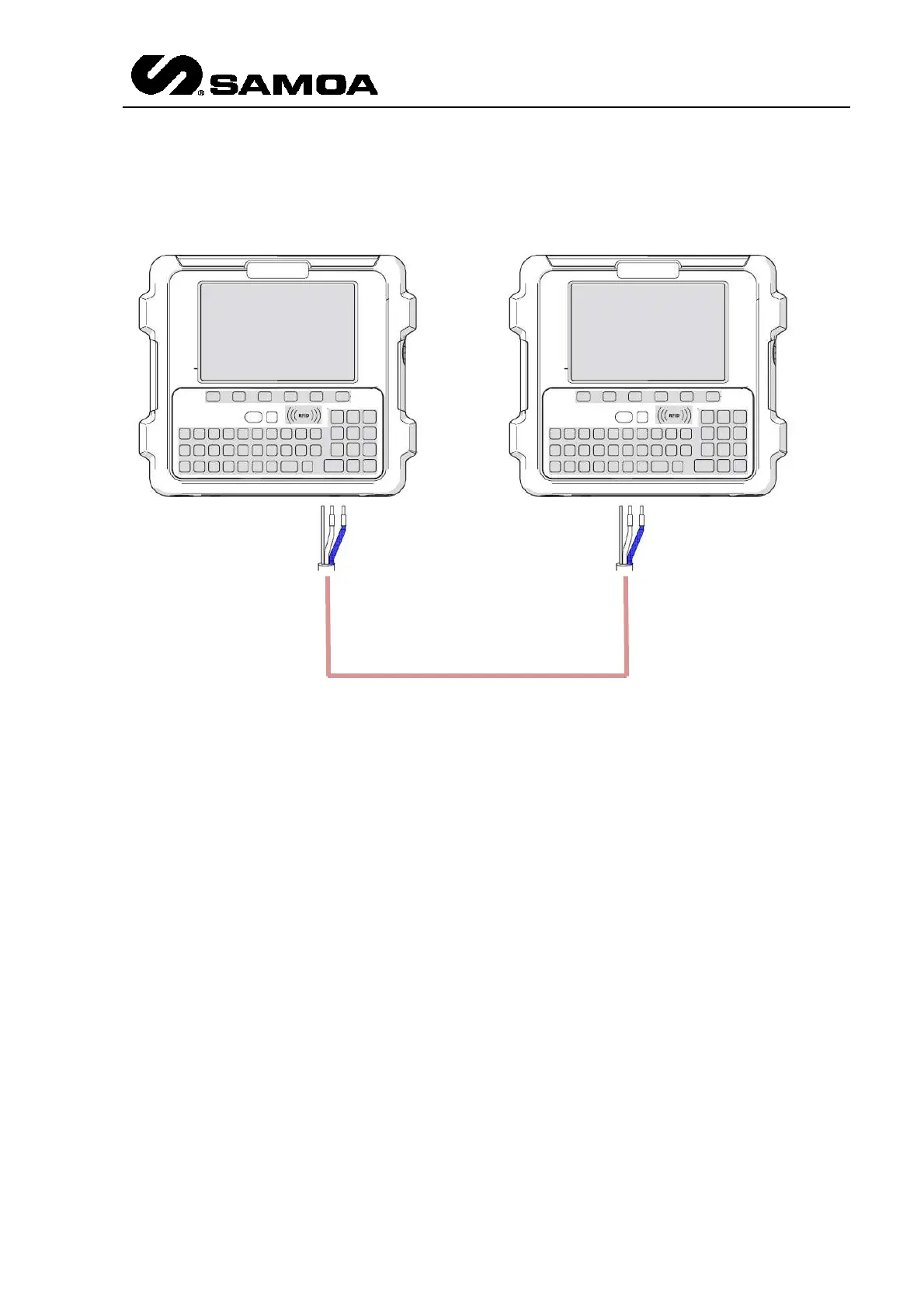

In the attached picture you can see the wiring connection
You can see that, as previously told, red and black wires must not be connected since there
is an external power source for both items.
On the other hand, you will see that UDat have two terminals BUS IN and BUS OUT. It is not
allowed to connect wiring either from BUS IN to BUS IN or BUS OUT to BUS OUT
