Rev 3 (XXXX 2019)
NexU INSTALLATION MANUAL
31

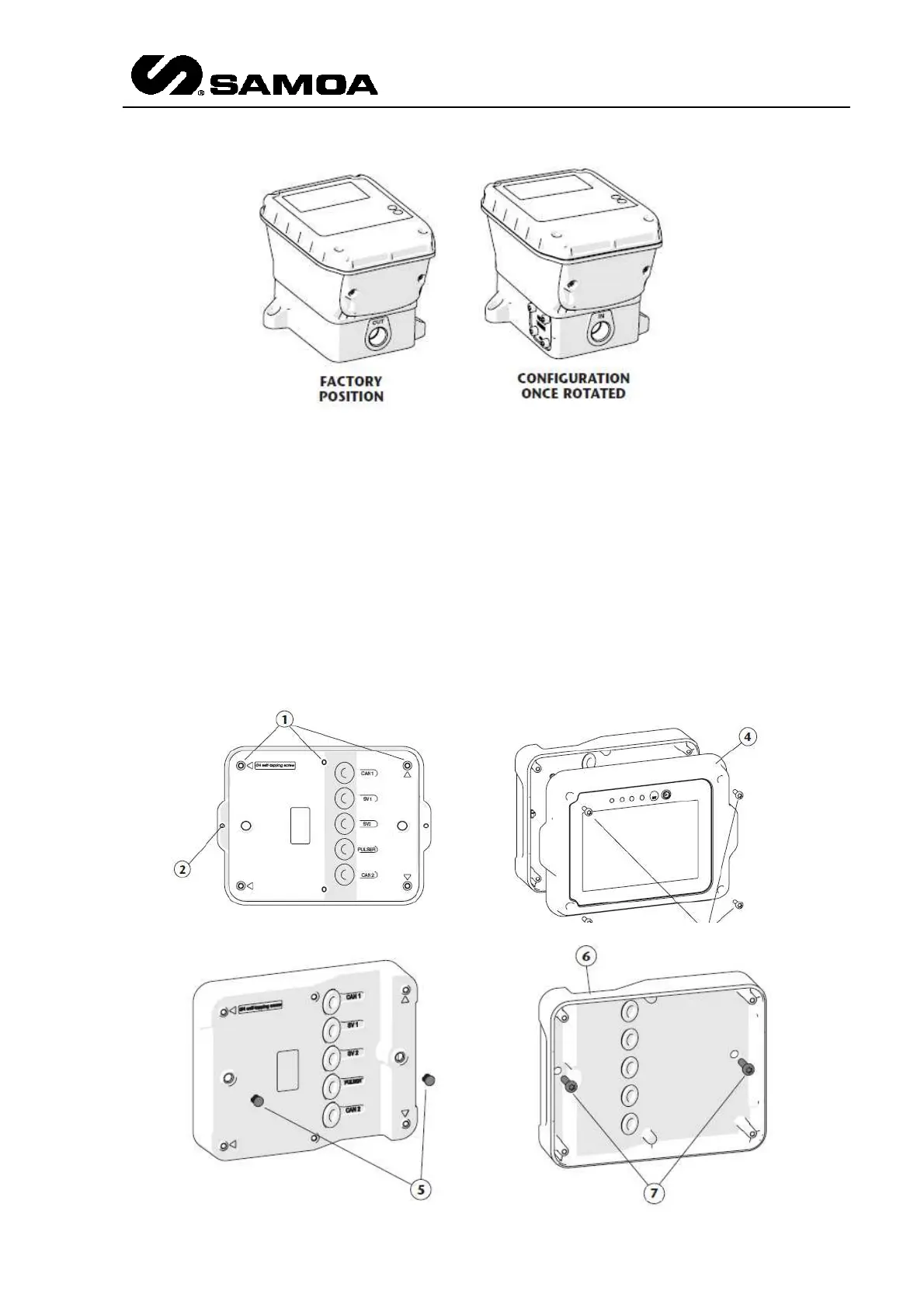

3.3.4 UCOUNT / UVIEW
The device attachment can be done through the blind holes (1) by using 4 mm diameter self-
tapping screws. The attachment holes (2) are used in case of flush mount installation by
using the screws supplied.
If required, the equipment can be fixed from its inner part following the next procedure:
1. Remove the screws (3) and remove the front cover (4).
2. Remove the plugs (5).
3. Fix the back cover of the equipment (6), previously wired, with 2 screws (7).
4. Wire the electronic board, reassemble the front cover (4) and fix the screws (3).
