SECTION VI
PARTS LIST
10509 Equipment Cart
Page 6-42Printed in U.S.A.
Item Part No. Description Qty.Item Part No. Description Qty.

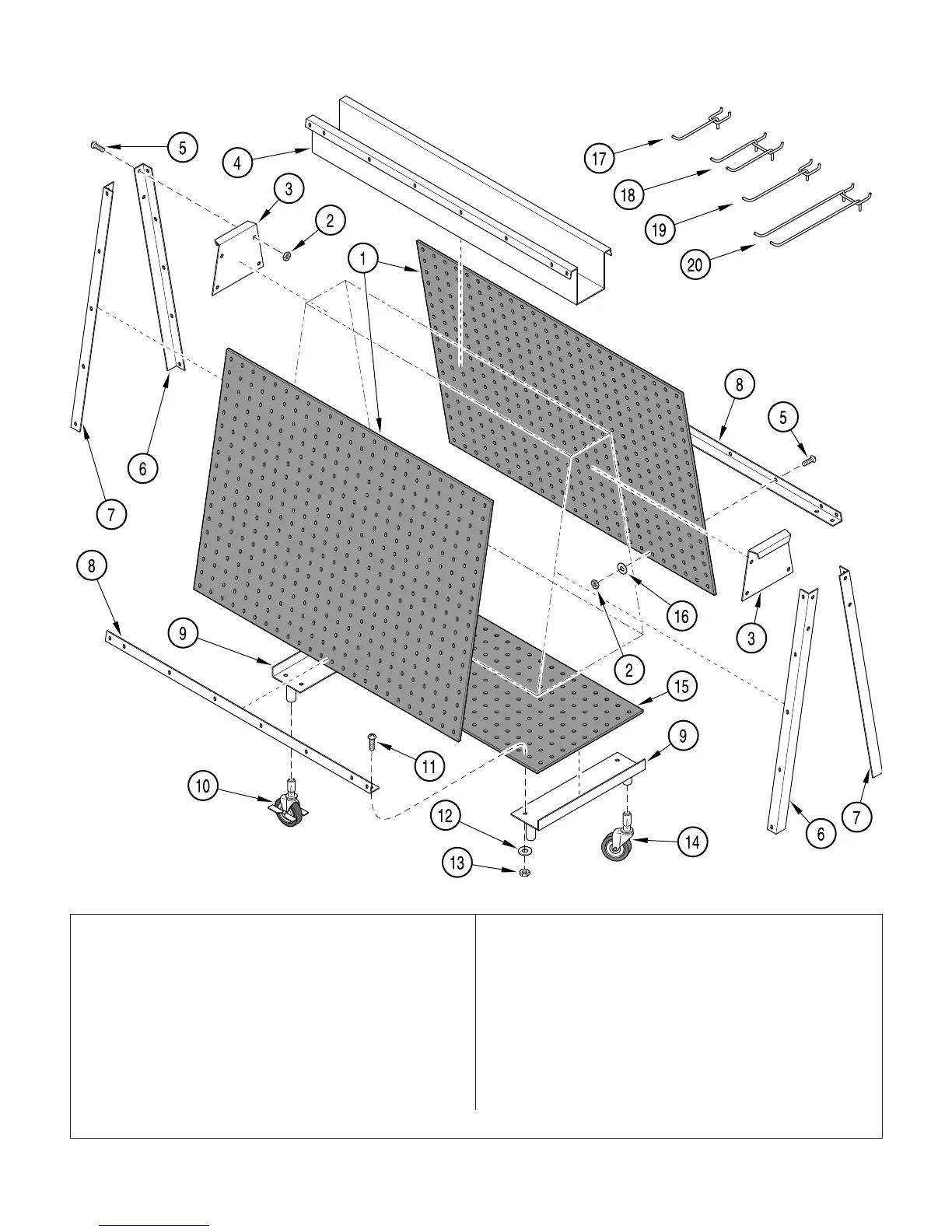

10509 Equipment Cart (Includes
Items 1 thru 20) .................................... 1
1 • 505-701756 • Side Pegboard ................................... 2
2 • 505-703134 • Nut.................................................... 52
3 • 505-715155 • Upper End Plate................................. 2
4 • 505-715158 • Small Parts Tray ................................ 1
5 • 040-0250-06 • Screw ............................................... 52
6 • 505-715157 • Left Support Angle ............................. 2
7 • 505-715156 • Right Support Angle ........................... 2
8 • 505-715159 • Bottom Mounting Strap ...................... 2
9 • 515-715162 • Angle Tube Assembly ........................ 2
CA820800
10 • 505-701906 • Brake Caster ...................................... 2
11 • 505-702995 • Screw ................................................. 8
12 • 505-703458 • Washer ............................................... 8
13 • 505-703203 • Nut ...................................................... 8
14 • 505-701905 • Caster................................................. 2
15 • 505-701757 • Bottom Pegboard ............................... 1
16 • 505-703448 • Washer ............................................. 44
17 • 505-700077 • Hook (3-inch Single) ........................ 20
18 • 505-700078 • Hook (3-inch Double) ......................... 3
19 • 505-700095 • Hook (5-inch Single) .......................... 1
20 • 505-700097 • Hook (9-inch Double) ......................... 1
